Piston Pins

WARNING: This page is about a different variant/trim than selected.

Measure the diameter of the piston pin.
Piston pin diameter

21.001 ~ 21.007mm (0.8268 ~ 0.8270in.)

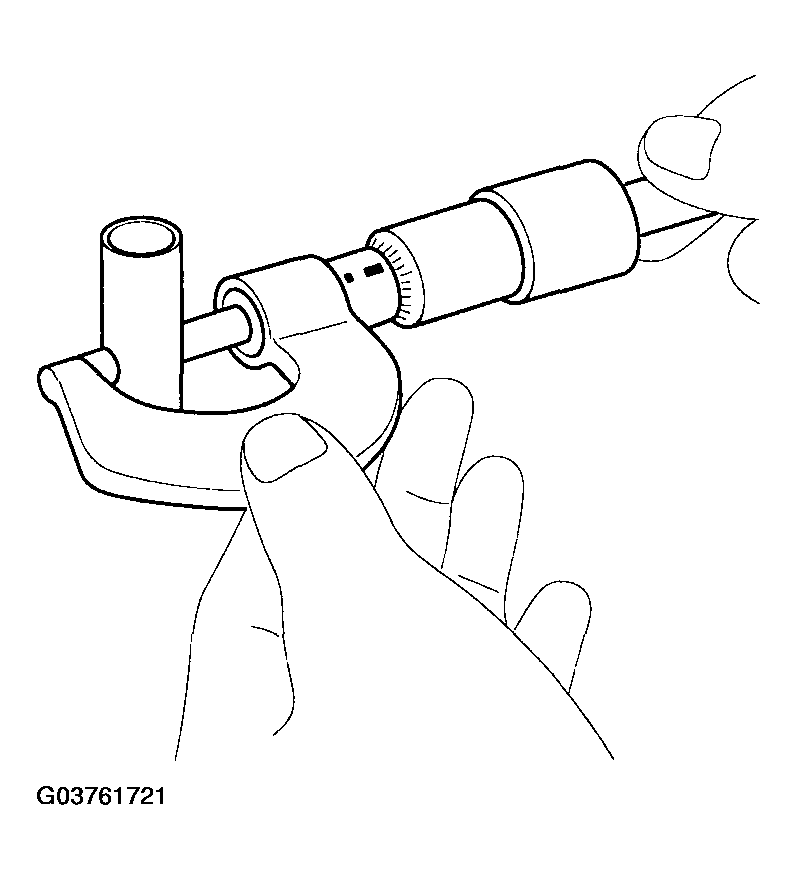

Fig 1: Measuring Diameter Of Piston Pin
Courtesy of HYUNDAI MOTOR CO.
Measure the piston pin-to-piston clearance.
Piston pin-to-piston clearance

0.011 ~ 0.018mm (0.00043 ~ 0.00071 in.)
Check the difference between the piston pin diameter and the connecting rod small end diameter.
Piston pin-to-connecting rod interference

0.016 ~ 0.033mm (0.00063 ~ 0.00130in.)
