Engine Block: Component

WARNING: This page is about a different variant/trim than selected.

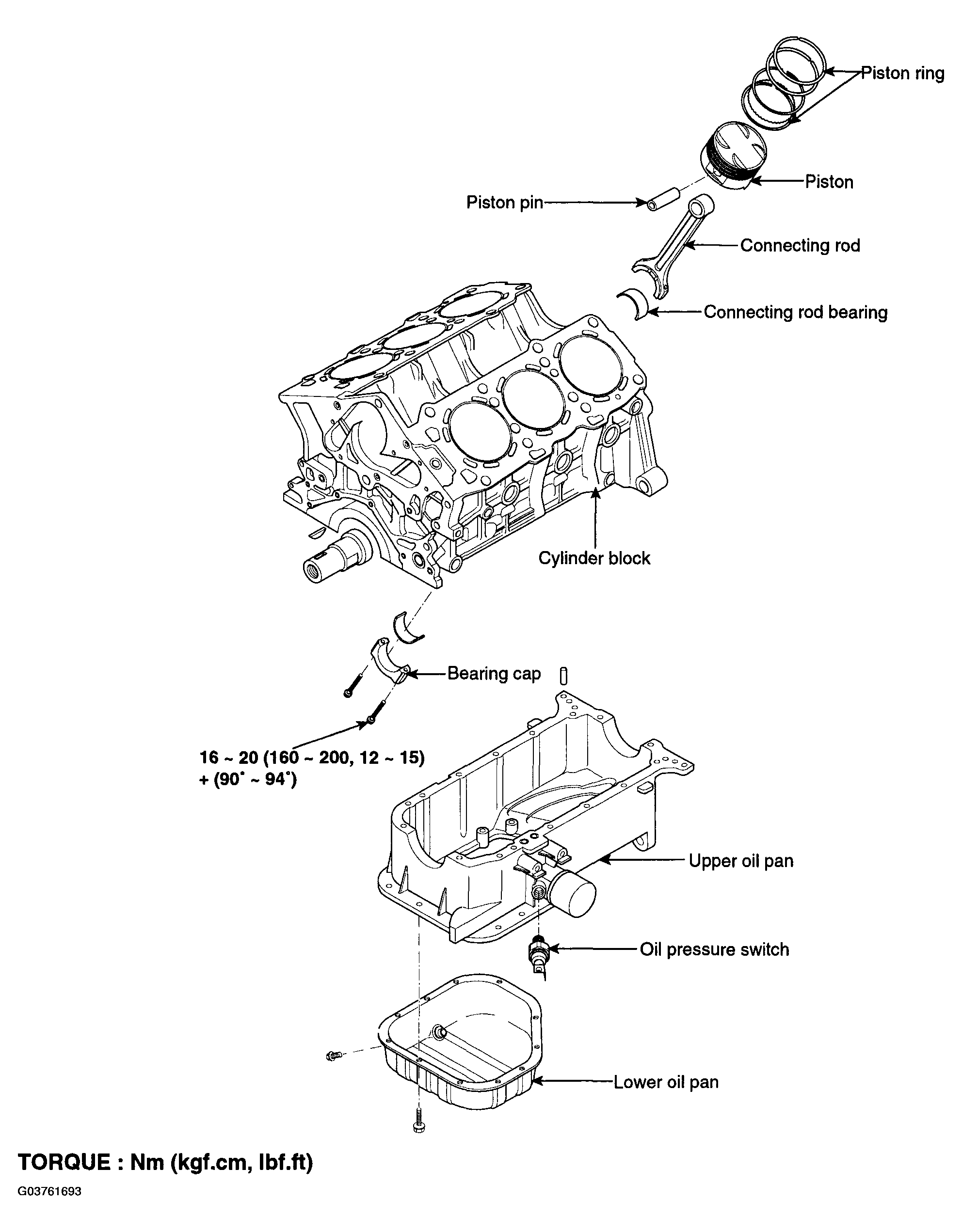

Fig 1: Engine Block Replacement Components With Torque Specifications (1 Of 2)
G03761693Courtesy of HYUNDAI MOTOR CO.

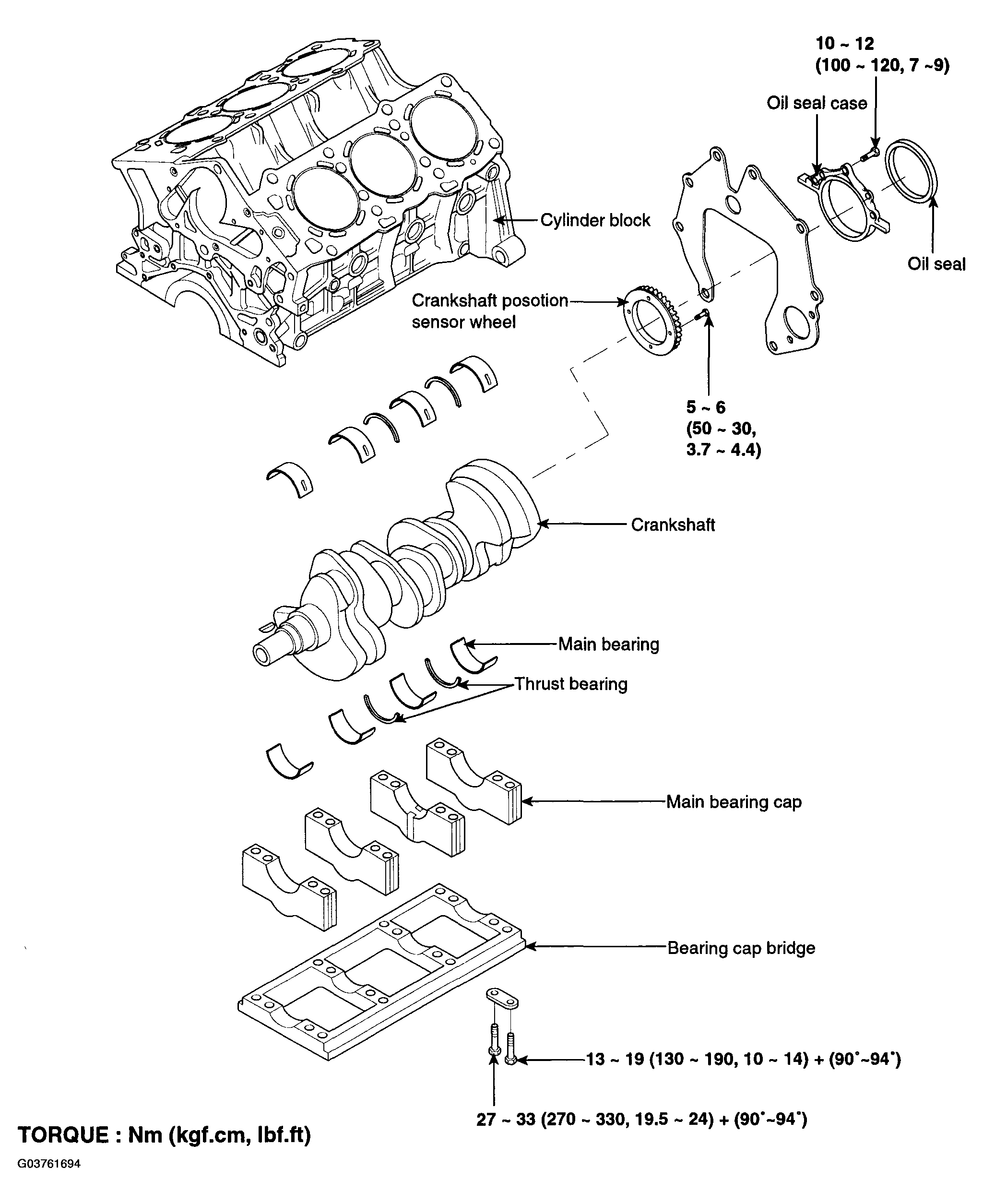

Fig 2: Engine Block Replacement Components With Torque Specifications (2 Of 2)
G03761694Courtesy of HYUNDAI MOTOR CO.
