Cylinder Head Assembly: Components

WARNING: This page is about a different variant/trim than selected.

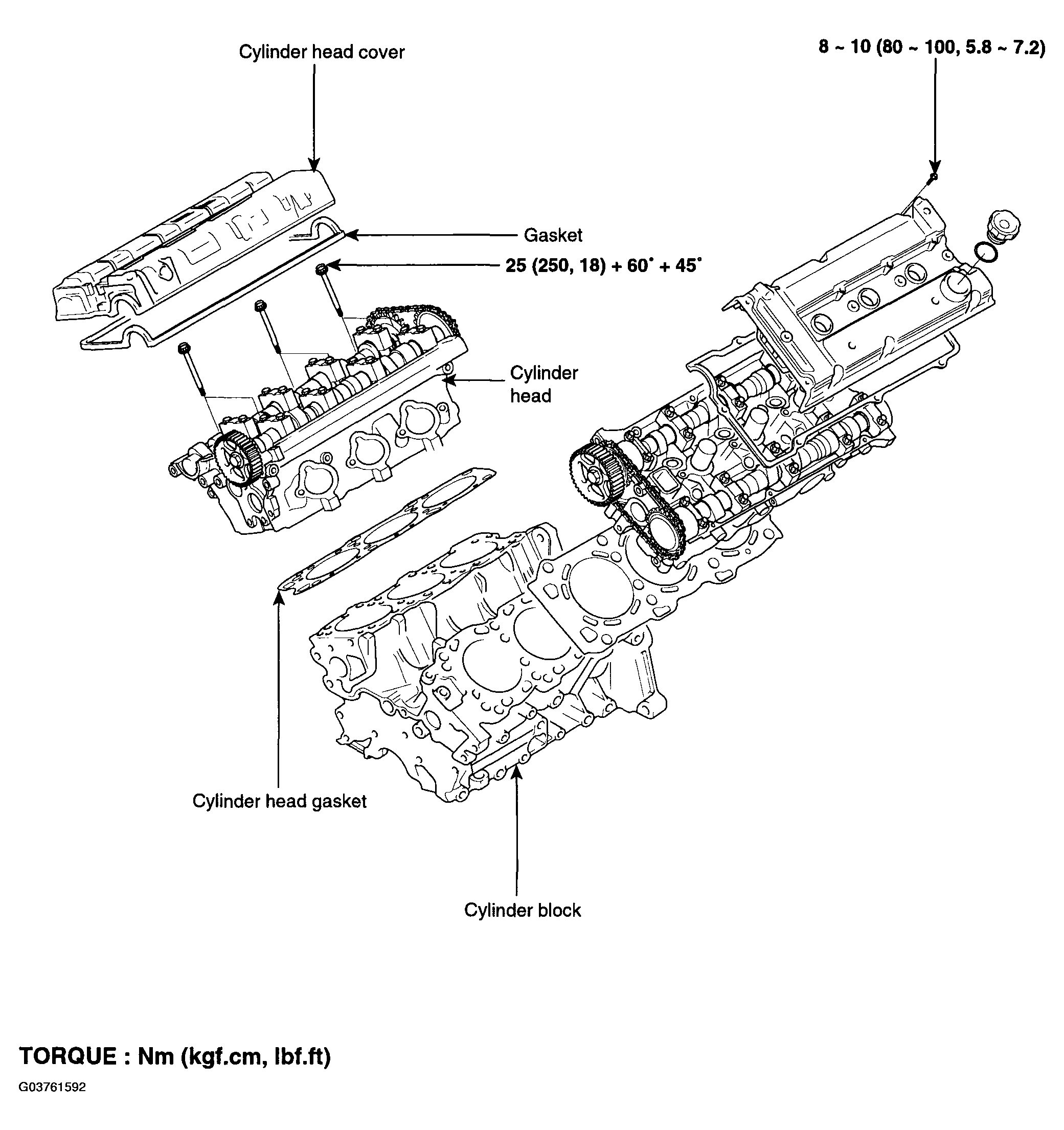

Fig 1: Cylinder Head & Cylinder Cover Assemblies And Torque Specifications
G03761592Courtesy of HYUNDAI MOTOR CO.

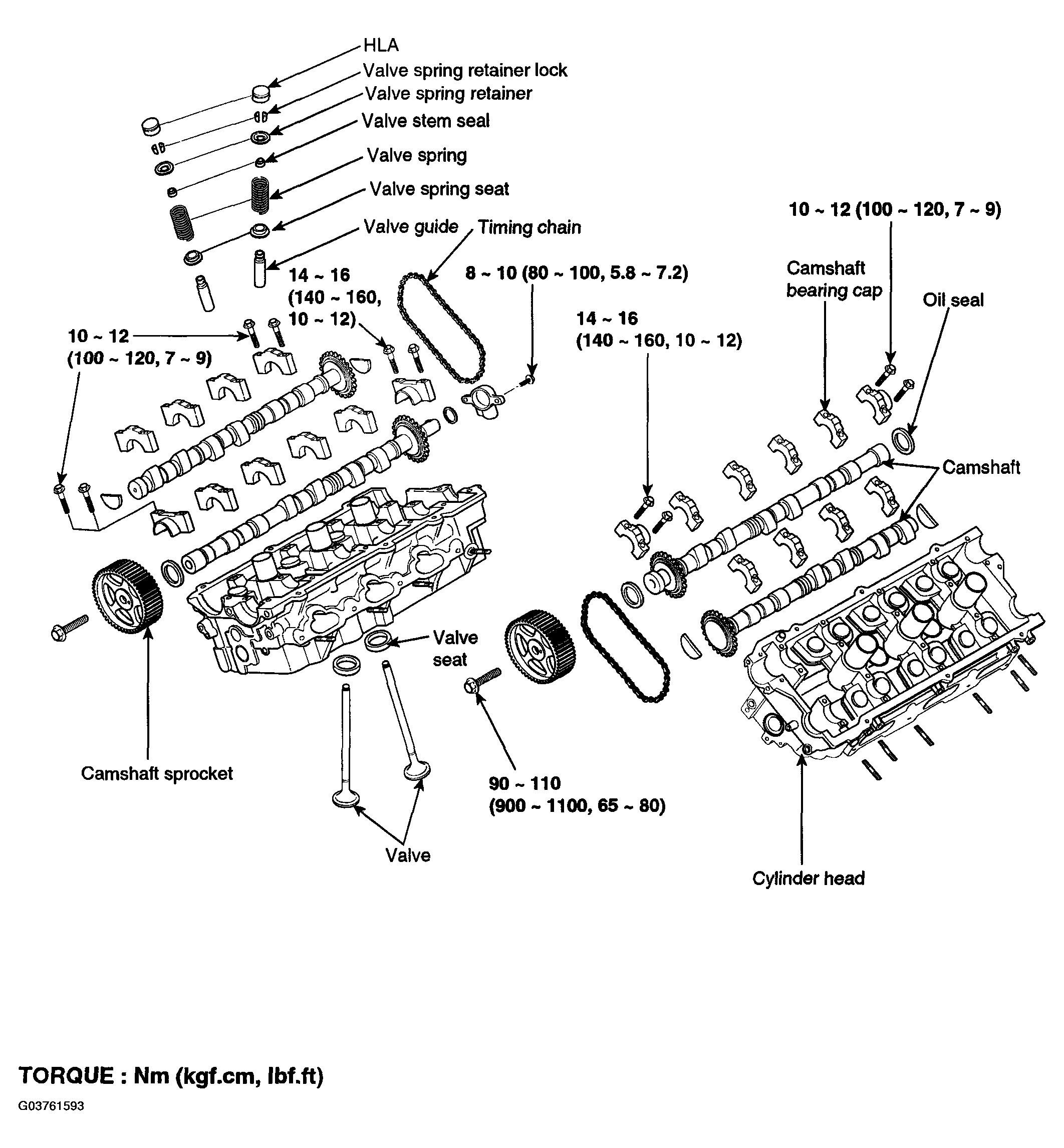

Fig 2: Exploded View Of Cylinder Head Assemblies And Torque Specifications
G03761593Courtesy of HYUNDAI MOTOR CO.
