Starter Test Procedure

After the battery test, press ENTER immediately for the starter test.

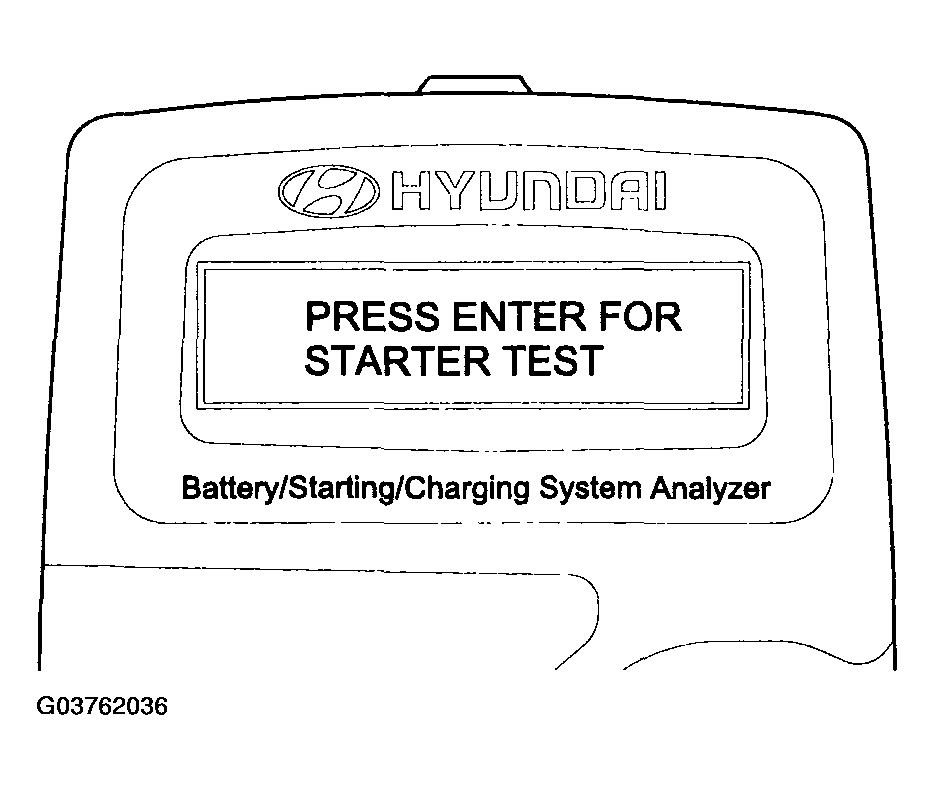

Fig 1: Identifying STARTER TEST Display
Courtesy of HYUNDAI MOTOR CO.
After pressing ENTER key, start the engine.

Fig 2: Identifying START ENGINE Display
Courtesy of HYUNDAI MOTOR CO.
Cranking voltage and starter test results will be displayed on the screen.
Take relevant action according to the test results by referring to the starter test results as given below.

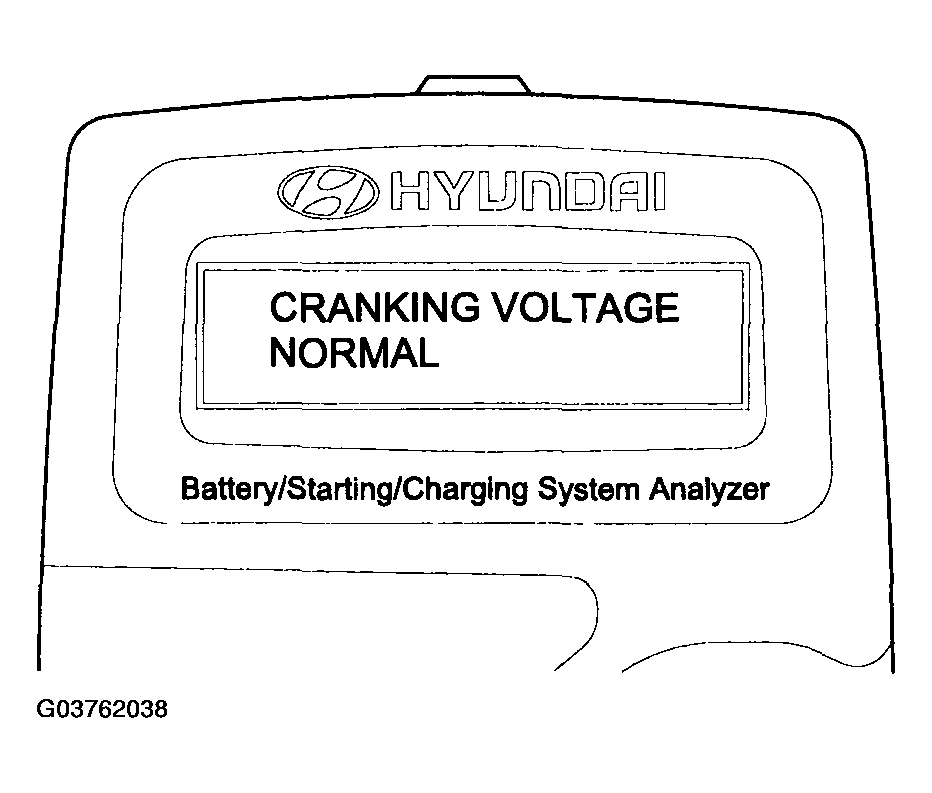

Fig 3: Identifying Starter Test Results Display
Courtesy of HYUNDAI MOTOR CO.
To continue charging system test, press ENTER.
