Tucson GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G4GC - GSL 2.0)
>>
Gasoline Engine Control System
>>
Components Location
Components Location

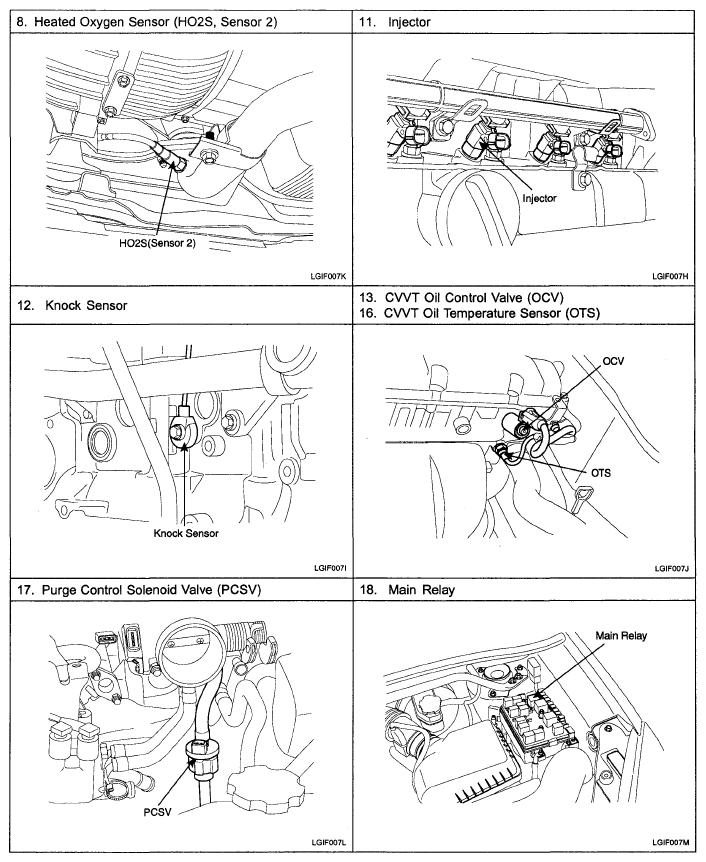

Fig 1: Identifying Fuel System Components Locations (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

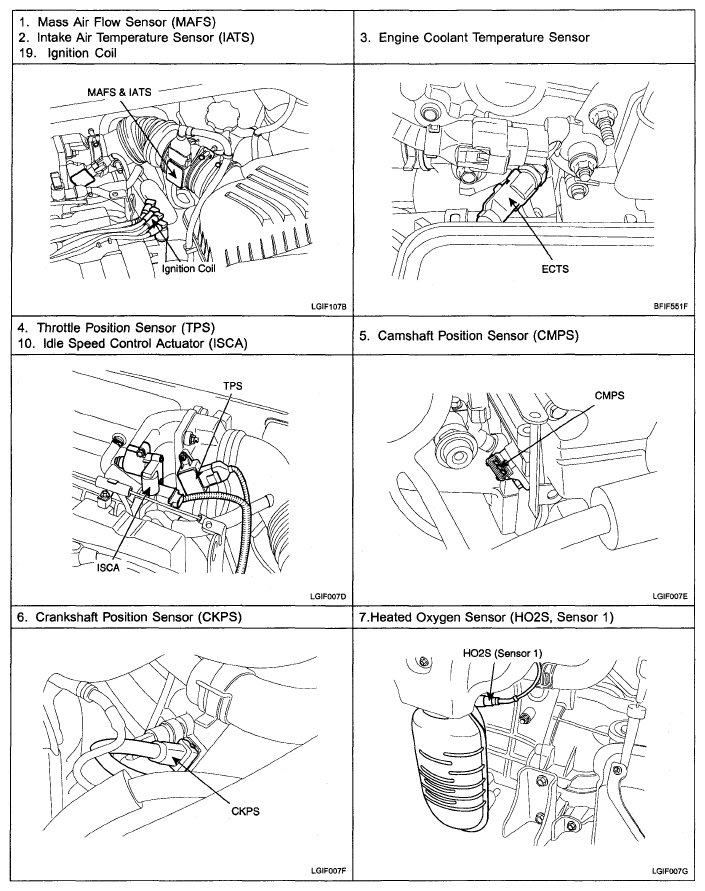

Fig 2: Identifying Fuel System Components Locations (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

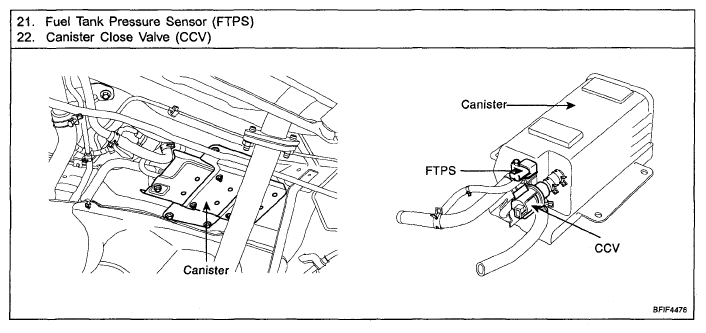

Fig 3: Identifying Fuel System Components Locations (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

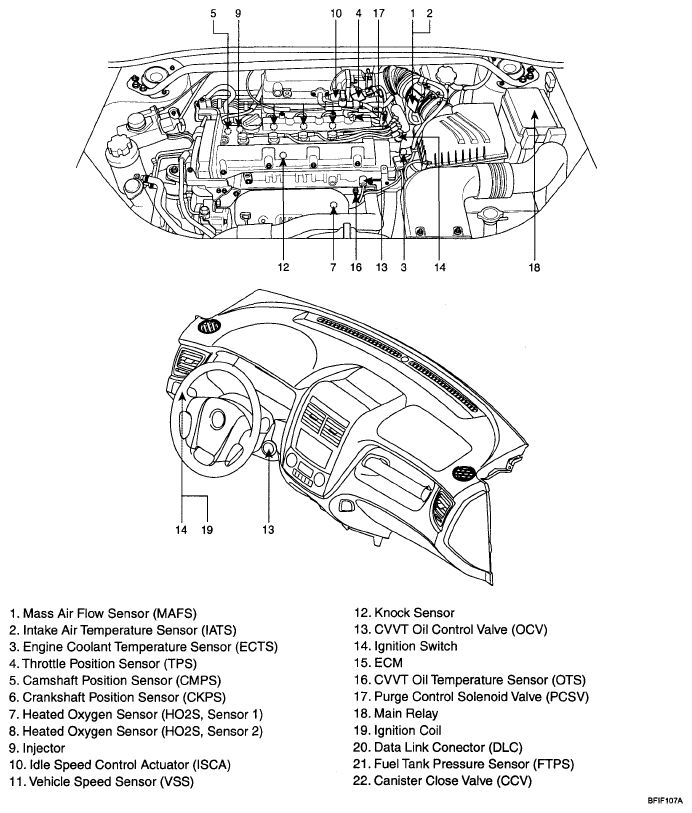

Fig 4: Identifying Fuel System Components Locations (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
