Fuel Pressure Test

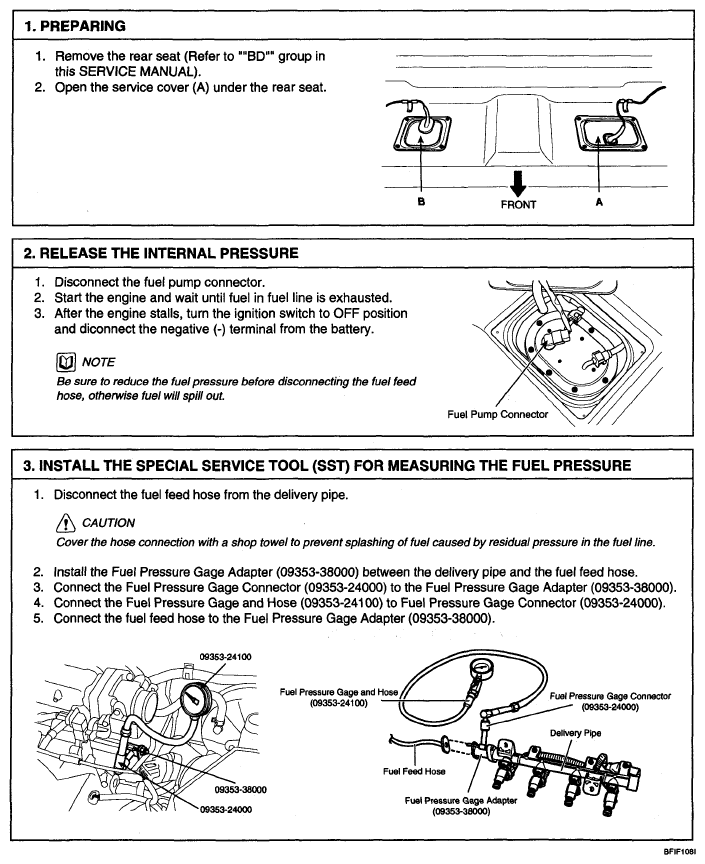

Fig 1: Fuel Pressure Test Procedure (1 Of 3)
G04810971Courtesy of HYUNDAI MOTOR CO.
Fig 2: Fuel Leakage Test System Diagram
G04810582Courtesy of HYUNDAI MOTOR CO.

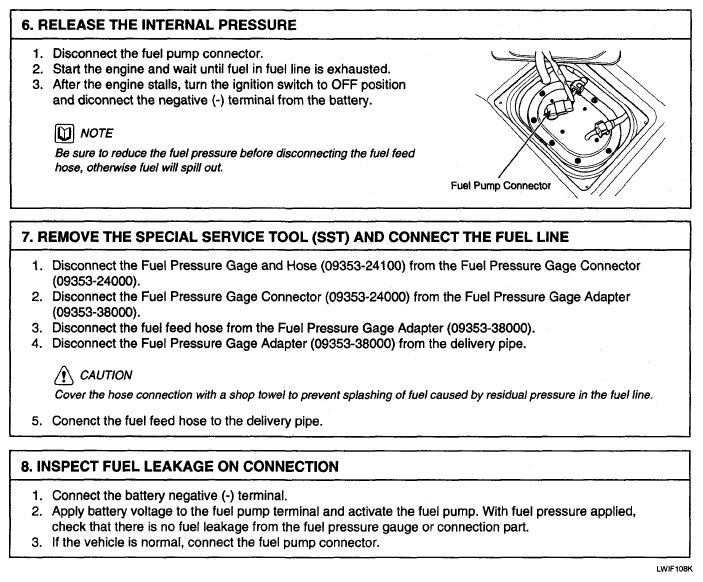

Fig 3: Identifying Fuel Pump Connector System Diagram
G04810583Courtesy of HYUNDAI MOTOR CO.
