Hyundai
>>
2008
>>
Tucson GLS, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G4GC - GSL 2.0)
>>
Fuel Delivery System
>>
Component Location
Component Location

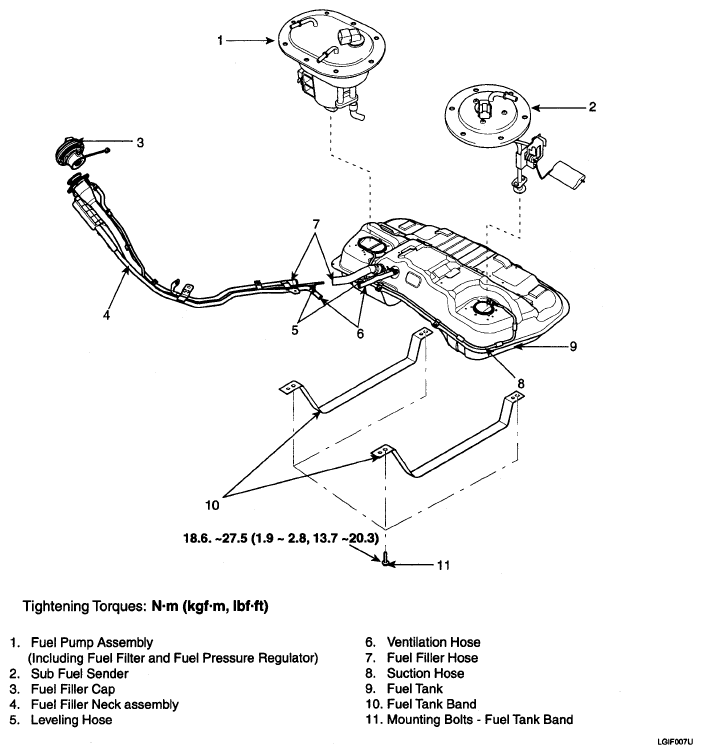

Fig 1: Fuel Delivery System Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
