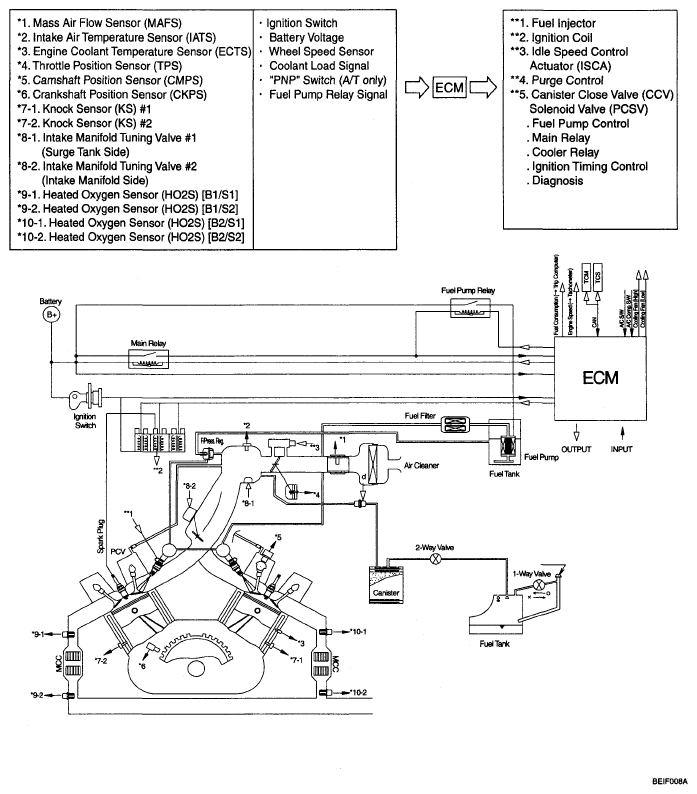

Home >> Hyundai >> 2008 >> Tucson GLS, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Auxiliary Emission Control Systems >> Emissions Control System >> General >> Schematic Diagram >> 2.7L V6
