Evaporative And ORVR Emission Control System: Description: Components

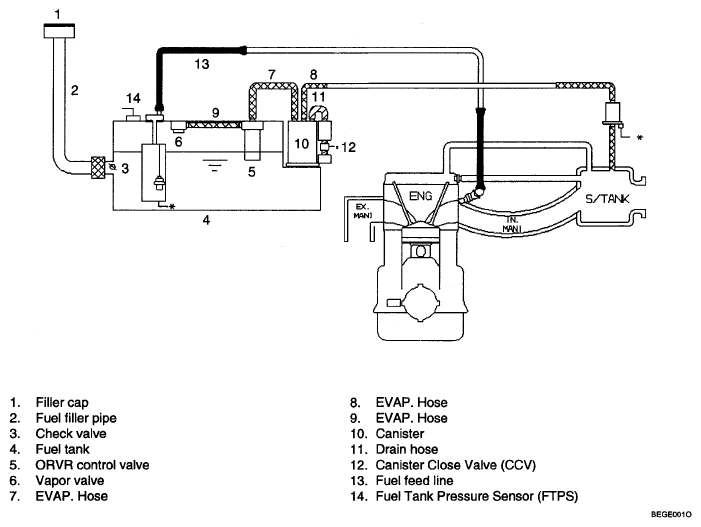

Fig 1: Evaporative And ORVR Emission Control System Diagram

G04810101

Courtesy of HYUNDAI MOTOR CO.
