Power Window

  1. No windows operate from the main switch on the driver's door.

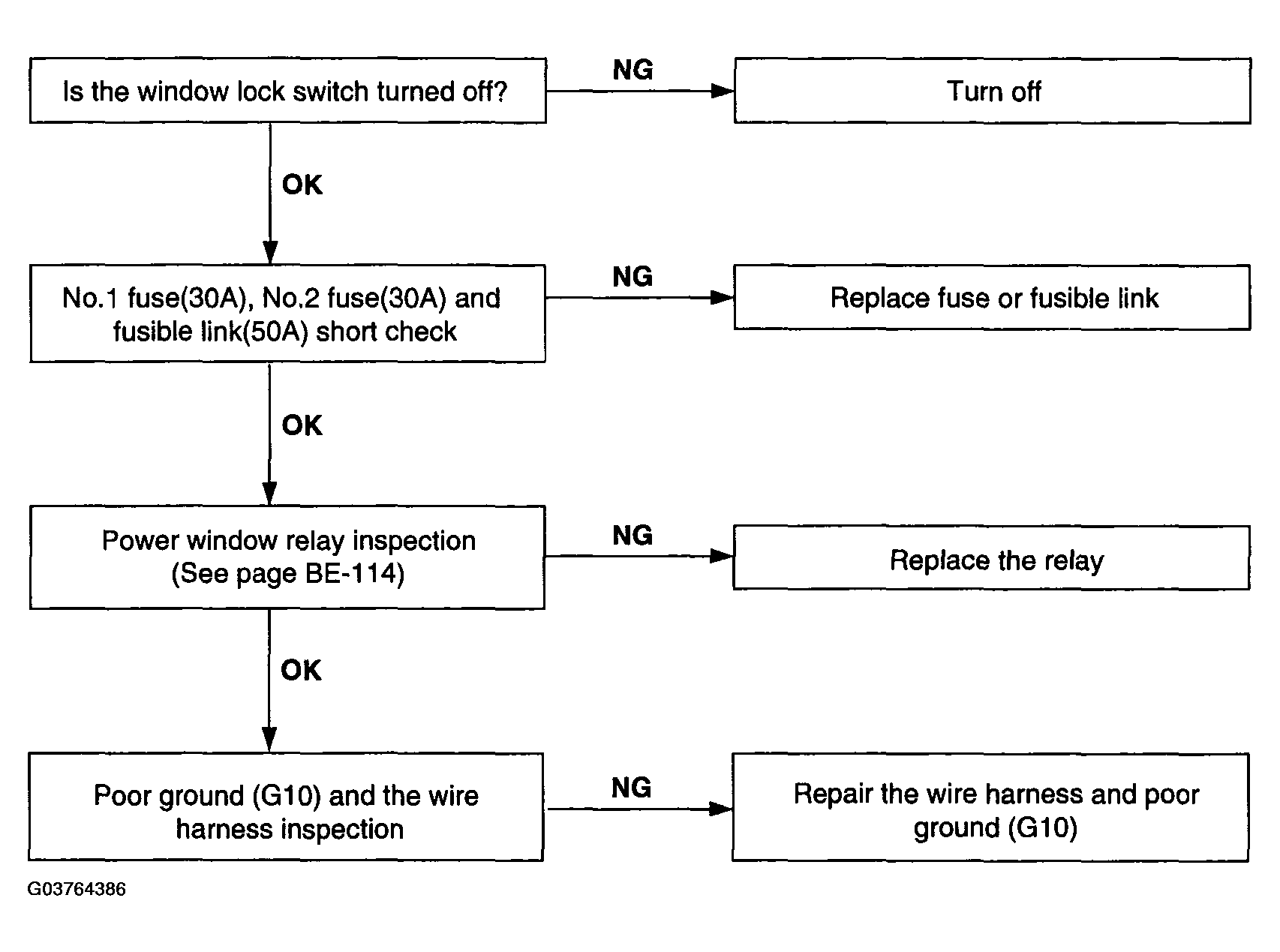

    Fig 1: Power Window Flow Chart - No Windows Operate From Main Switch On Driver's Door
    G03764386Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

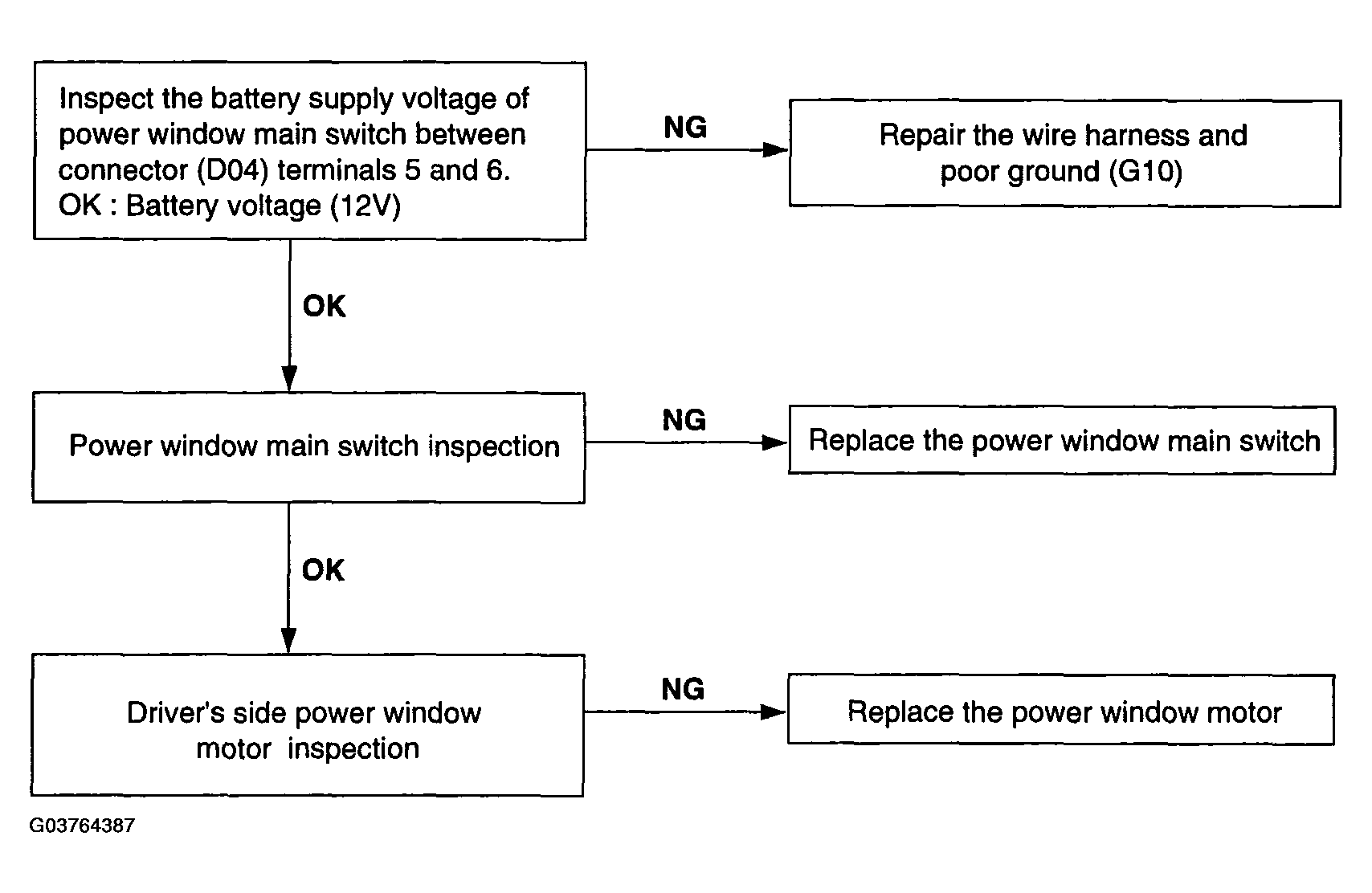

    Fig 2: Power Window Flow Chart - Driver's Side Window Does Not Operate
    G03764387Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

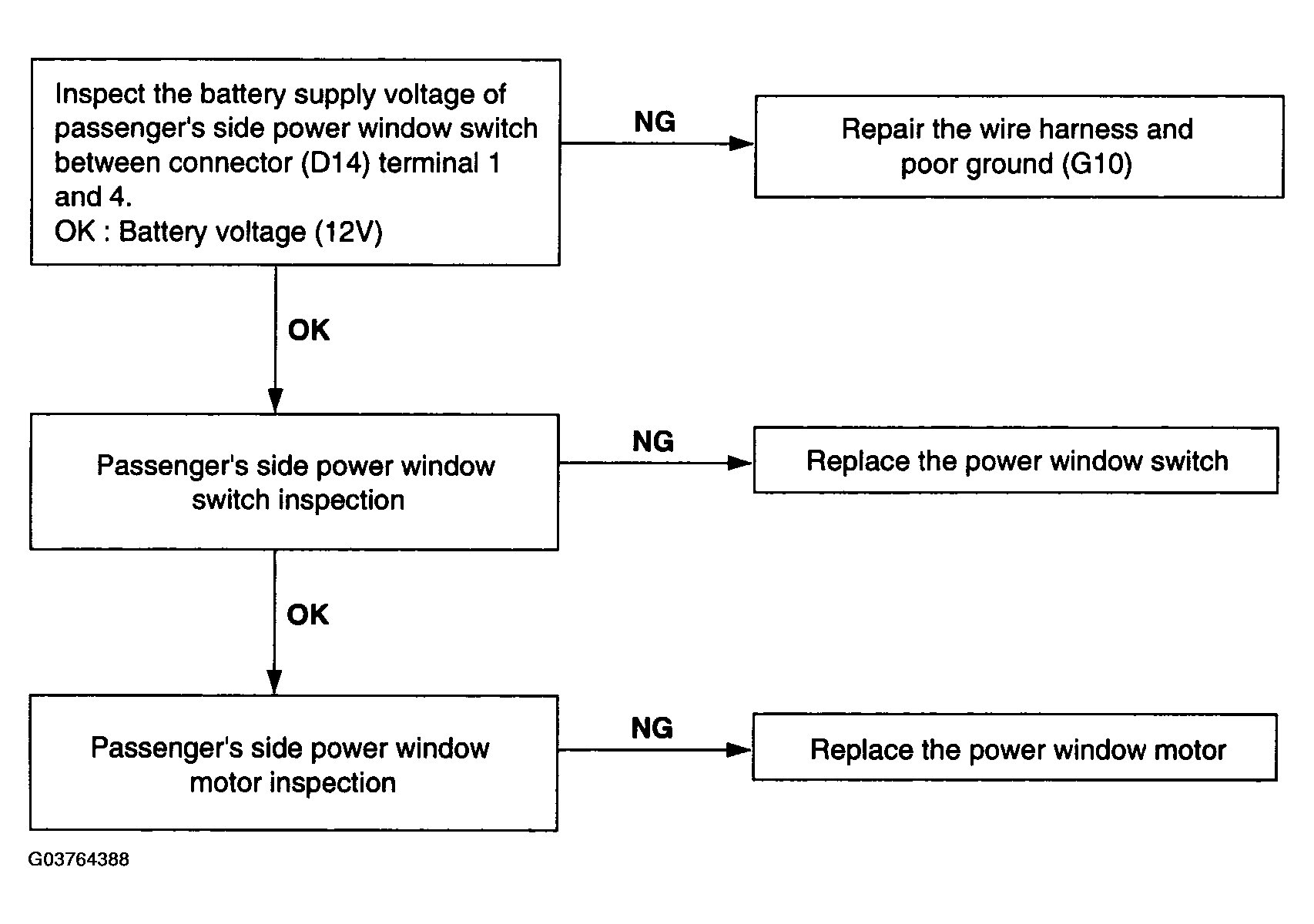

    Fig 3: Power Window Flow Chart - Passenger's Side Window Does Not Operate
    G03764388Courtesy of HYUNDAI MOTOR CO.
