Standard Flow Of Diagnostic Troubleshooting

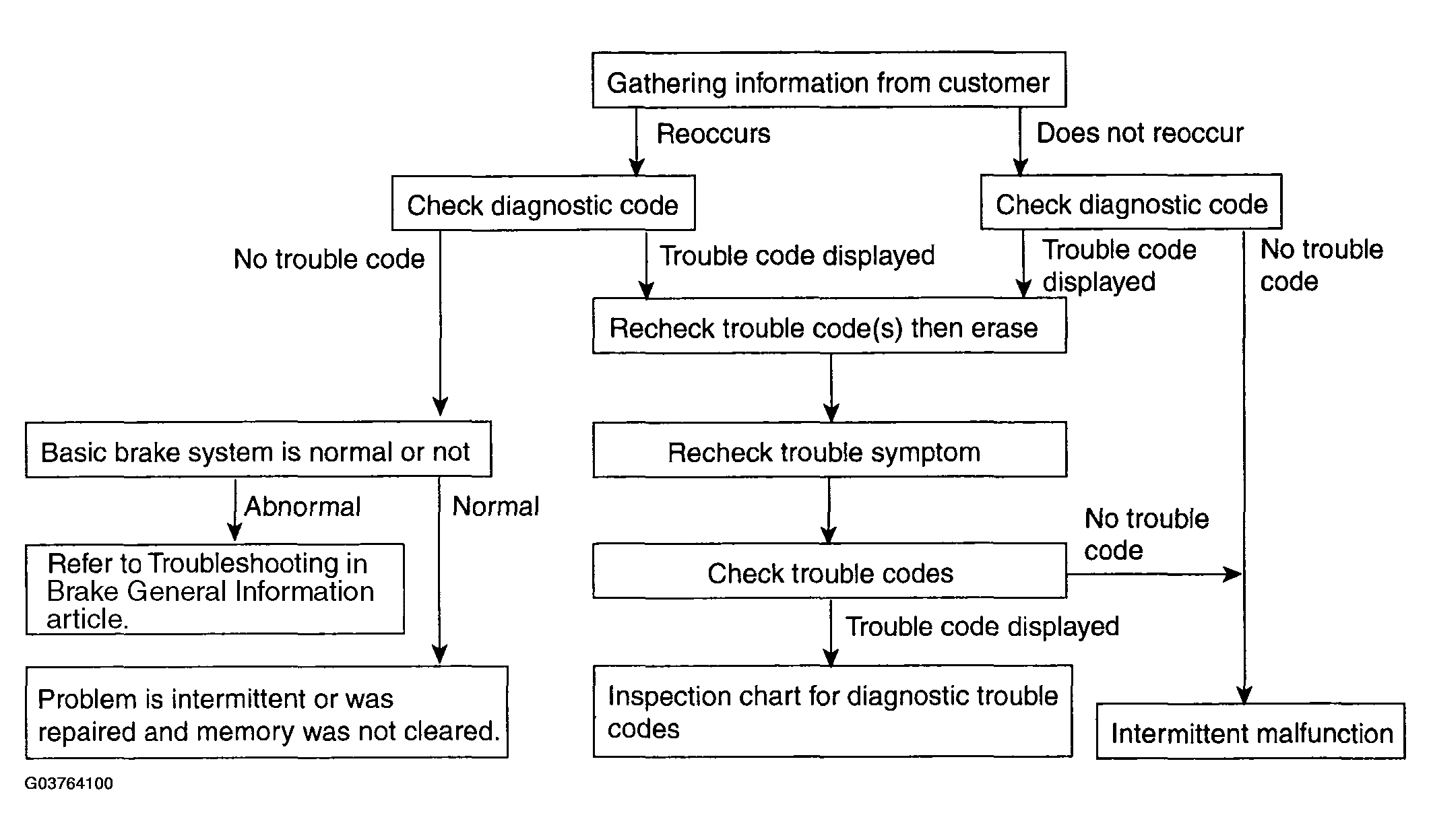

Fig 1: Standard Flow Chart Of Diagnostic Troubleshooting

Courtesy of HYUNDAI MOTOR CO.

* Using the customer problem analysis check sheet for reference, ask the customer as much detail as possible about the problem.
