Hi-Scan (Pro) Check

  1. Turn the ignition switch OFF.
  2. Connector the Hi-scan (pro) to the 16P data link connector located the driver's side kick panel.

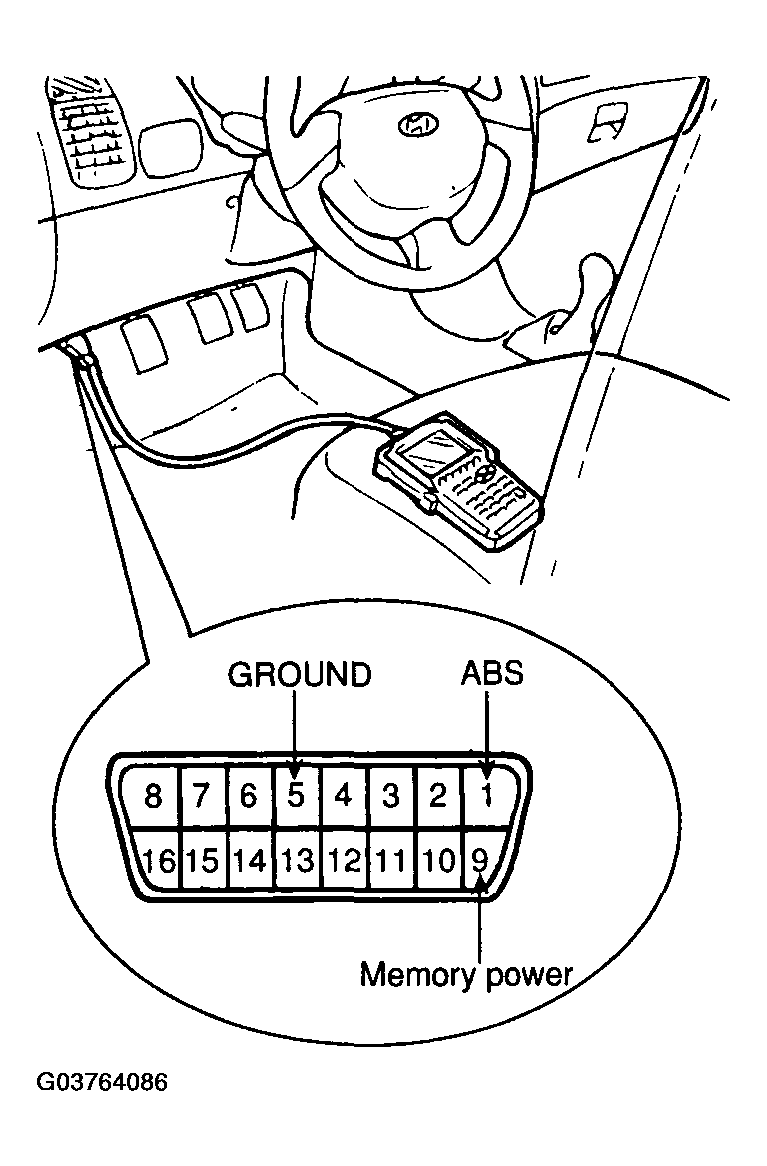

    Fig 1: Connecting Hi-Scan
    G03764086Courtesy of HYUNDAI MOTOR CO.
  3. Turn the ignition switch ON.
  4. Check for diagnostic trouble using the Hi-scan (pro)
  5. After completion trouble of the repair or correction of the problem, erase the stored fault codes the clear key on the Hi-scan (pro).
  6. Disconnect the Hi-scan (pro) from the 16P date link connector.
