Front Wheel Speed Sensor

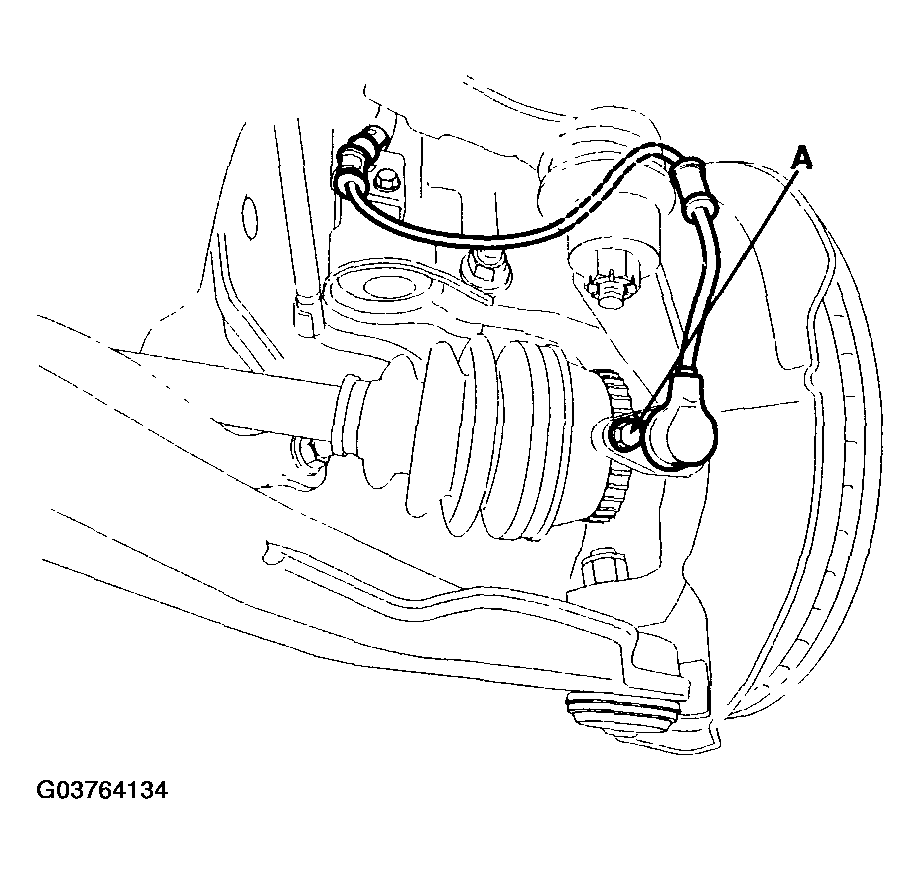

  1. Remove the front wheel speed sensor mounting bolt (A).
    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G03764134Courtesy of HYUNDAI MOTOR CO.

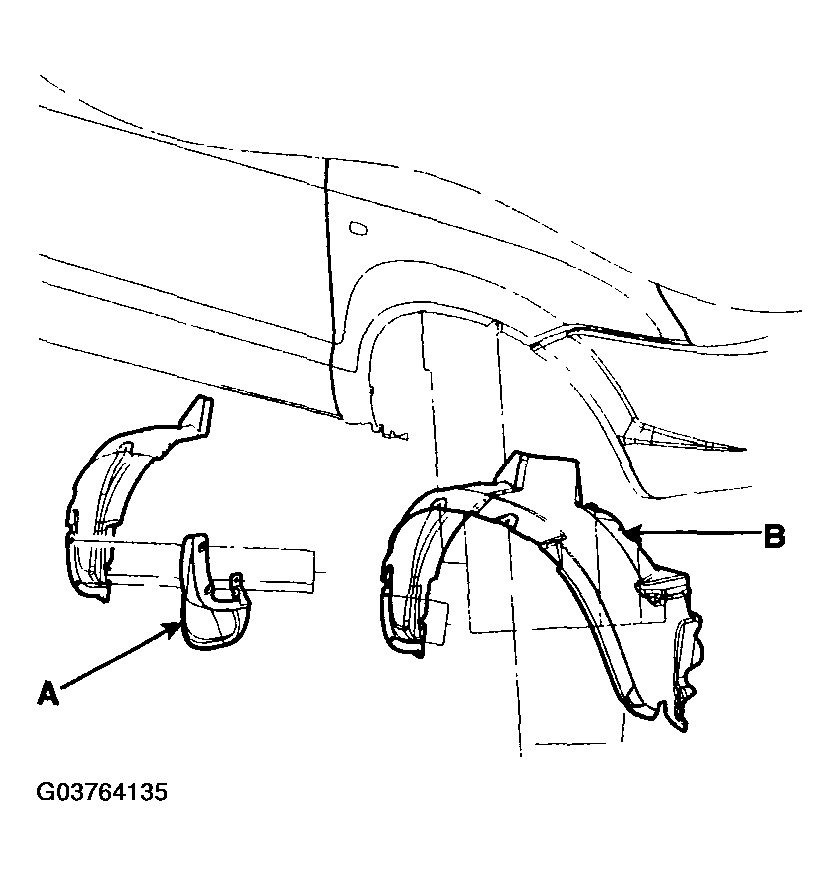

  2. Remove the front wheel guard (B), after removing the mud ground (A).
    Fig 2: Identifying Mud Ground & Front Wheel Guard
    G03764135Courtesy of HYUNDAI MOTOR CO.

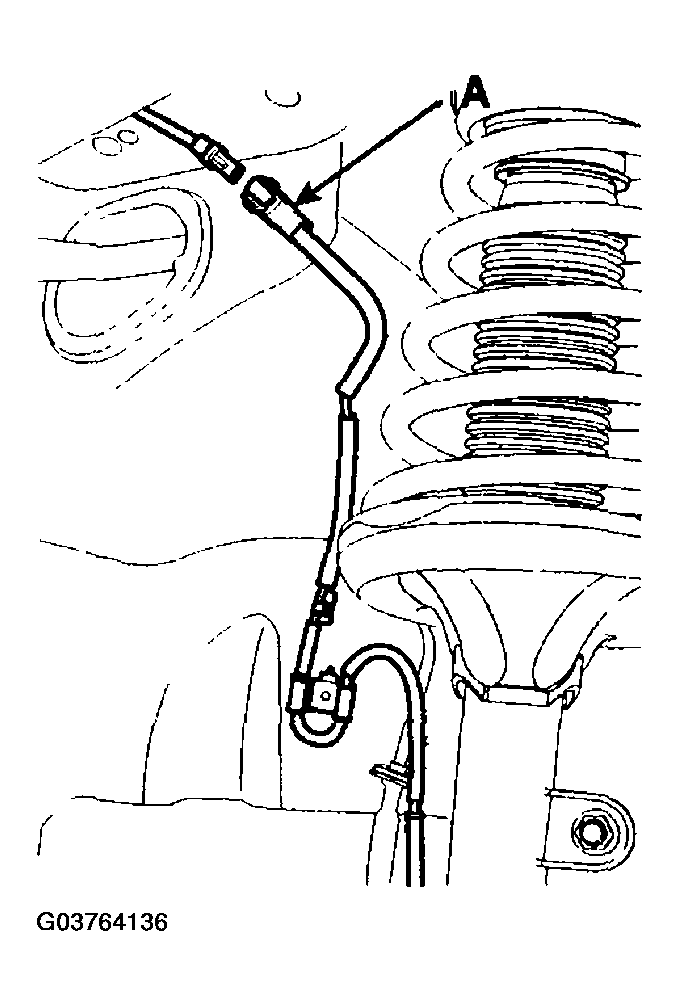

  3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).
    Fig 3: Identifying Wheel Speed Sensor Connector
    G03764136Courtesy of HYUNDAI MOTOR CO.
