Anti-Lock Braking System Wheel Speed Sensor: Components

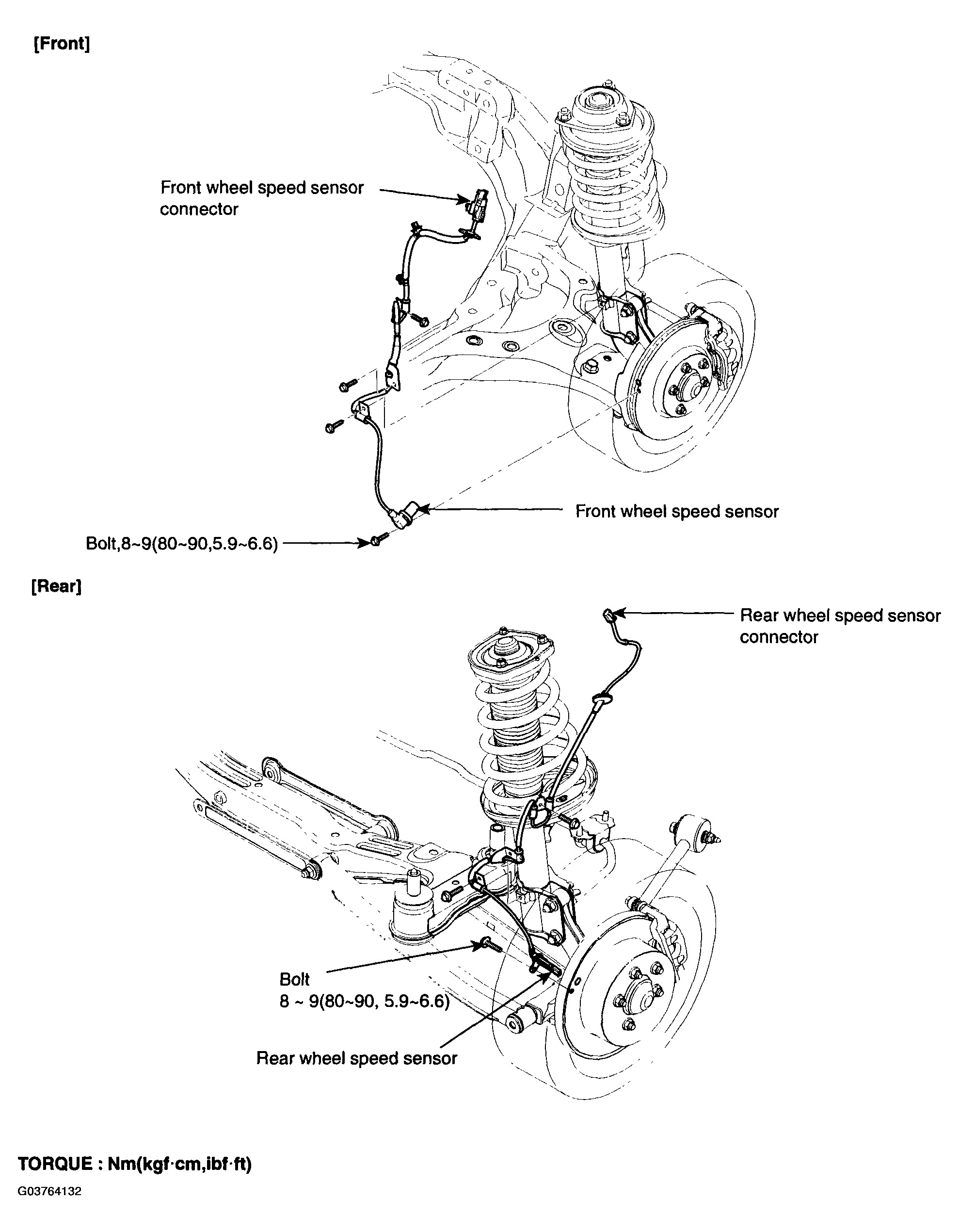

Fig 1: Identifying Anti-Lock Braking System Wheel Speed Sensor

G03764132

Courtesy of HYUNDAI MOTOR CO.
