Anti-Lock Braking System Control Module: Removal

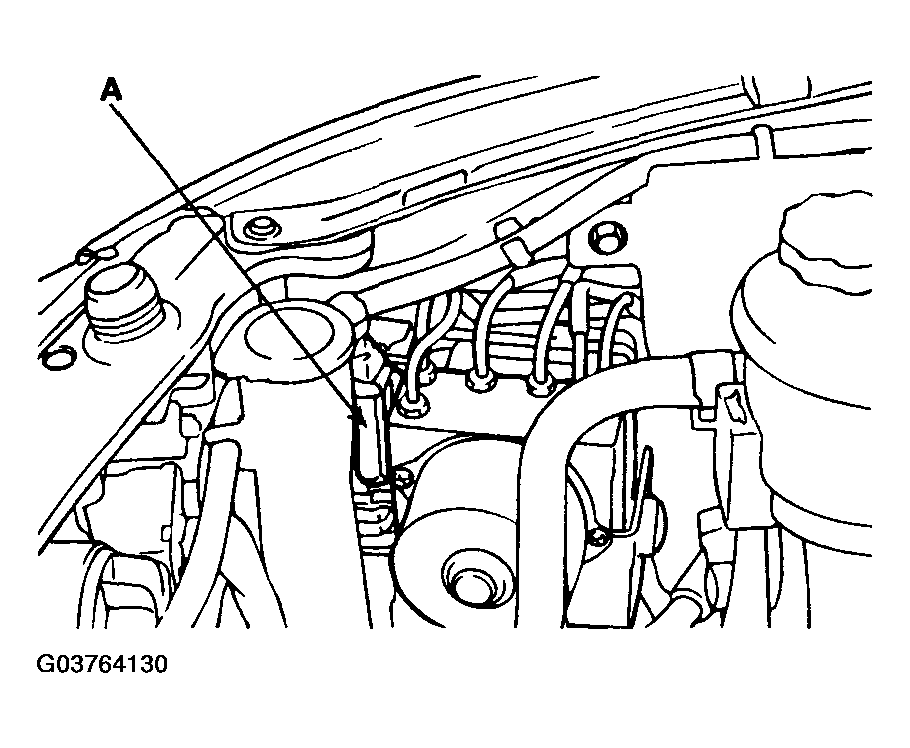

- Disconnect the double lock (A) from the Hecu.
Courtesy of HYUNDAI MOTOR CO.
- Disconnect the brake tube from the HECU by unlocking the nuts counterclockwise with a spanner.
NOTE:
- Do not spill brake fluid on vehicle; it may damage the paint; if brake fluid gets on the paint, wash it off immediately with water.
- Take care not to damage or deform the brake lines during remove and water.
- To prevent the brake fluid from flowing, plug and cover the hose ends and joints with a shop towel or equivalent material.
- Remove the three HECU brake mounting bolts disassembly the HECU with the bracket.
CAUTION:
- Never attempt to disassemble the HECU.
- The HECU must be transported and stored in an upright production and with the ports sealed.
Courtesy of HYUNDAI MOTOR CO.
- Remove the three HECU mounting bolts and disassembly the HECU from the bracket.
