Anti-Lock Braking System Control Module: Components

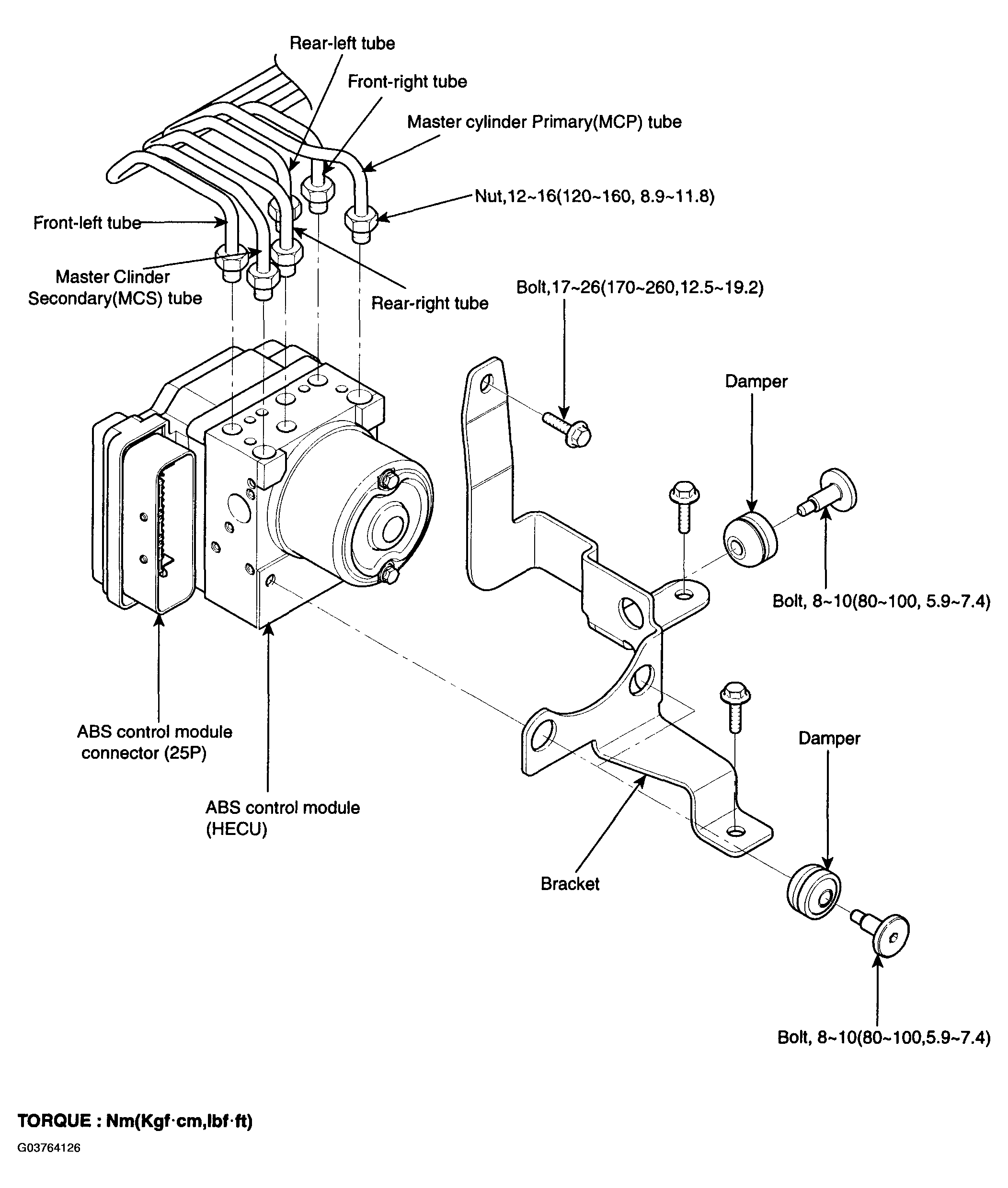

Fig 1: Identifying Anti-Lock Braking System Control Module Components

G03764126

Courtesy of HYUNDAI MOTOR CO.
