Auto Light Switch: Inspection

Operate the auto light switch, then check for continuity between terminals of 18P multi-function switch connector.

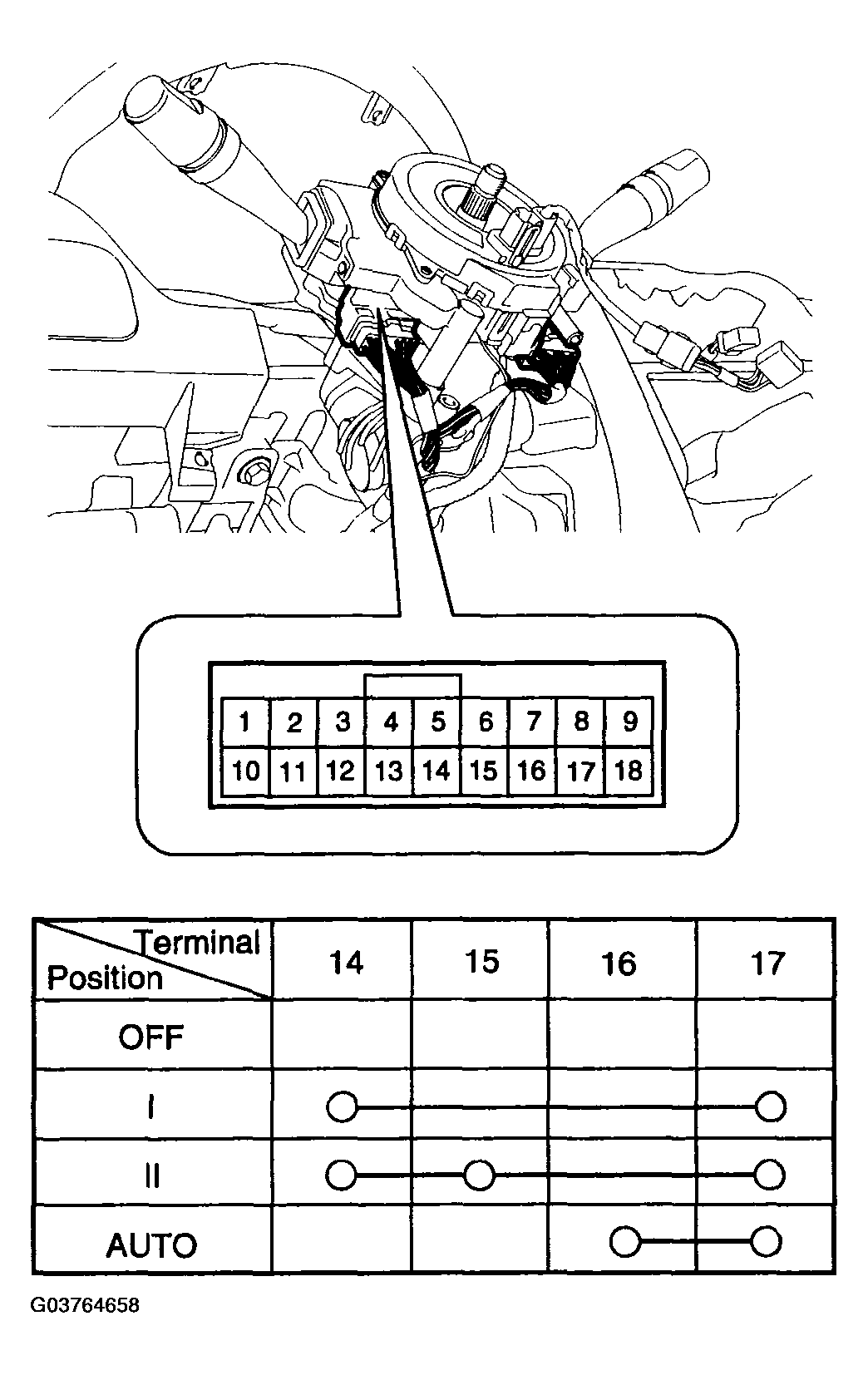

Fig 1: Multifunction Switch Connector Terminals & Auto Light Switch Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
