Audio Unit: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove shift trim and bracket.
  3. Remove the upper plate from the transmission shift lever, then remove the 3 screws holding the center facia panel.

    Remove the center facia panel (A) and disconnect the wire connectors.

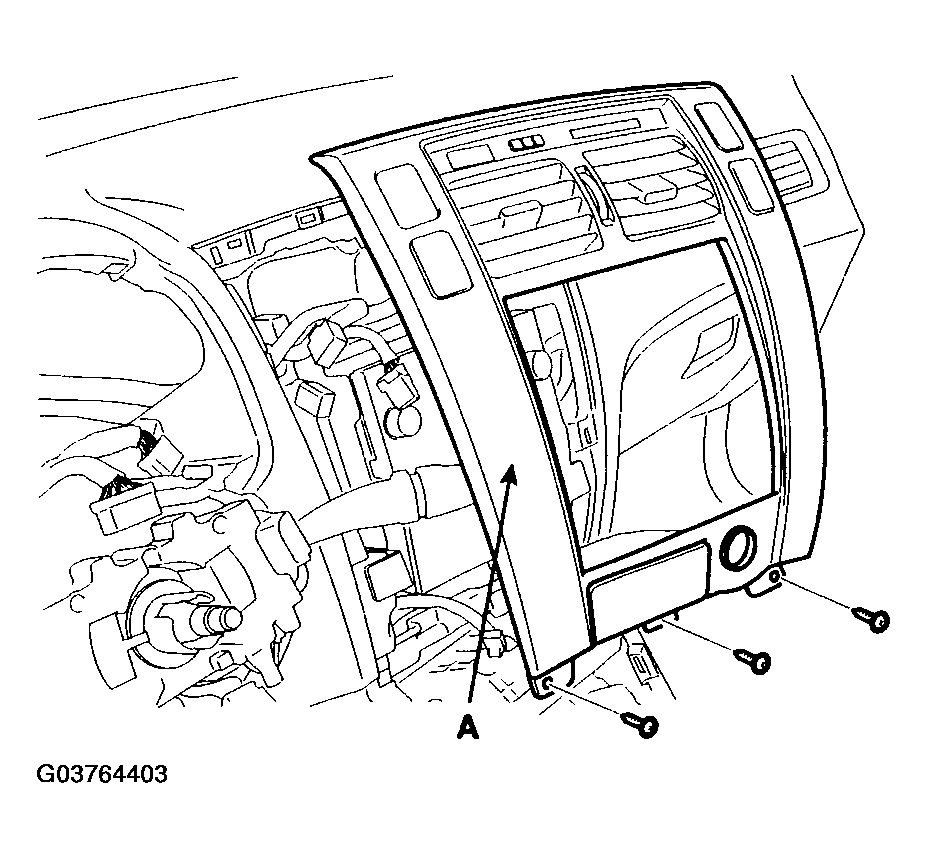

    Fig 1: Identifying Center Facia Panel & Retaining Screws
    G03764403Courtesy of HYUNDAI MOTOR CO.
  4. Remove the audio unit after removing 4 screws.

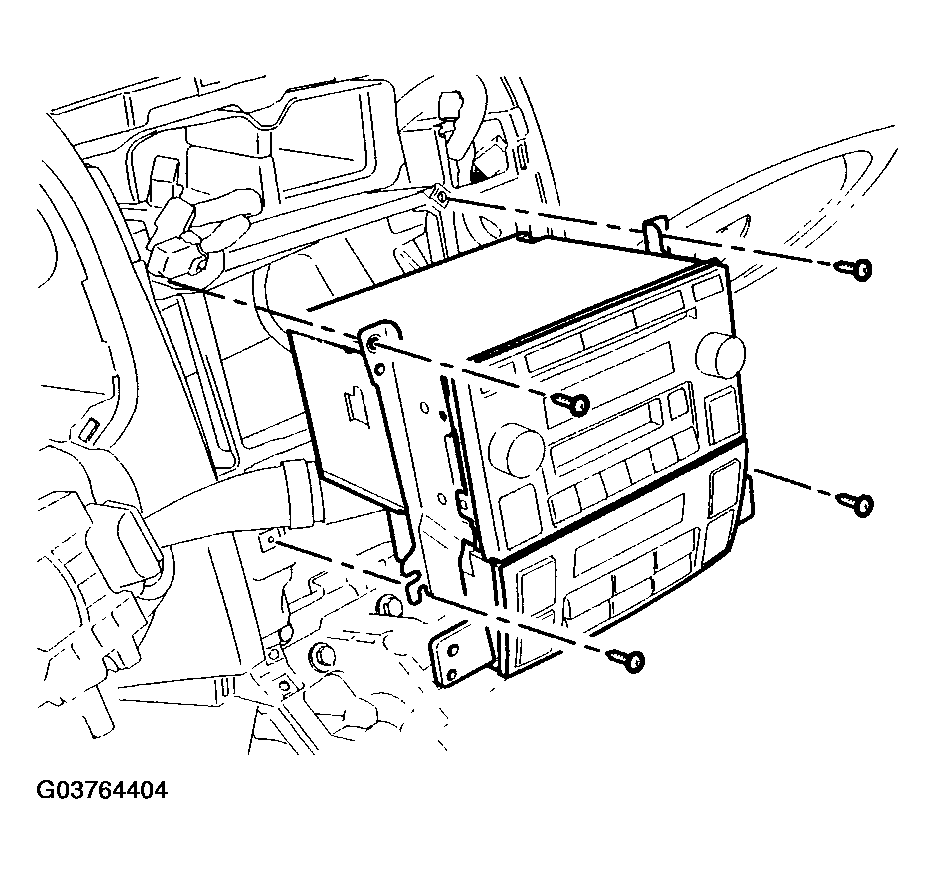

    Fig 2: Identifying Audio Unit Retaining Screws
    G03764404Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
