Check Can Communication Line For Short To Ground

  1. Measure resistance between terminal 6 of the PCM harness connector and chassis ground.
  2. Measure resistance between terminal 7 of the PCM harness connector and chassis ground.

    Specification: Infinite (above 10kΩ)

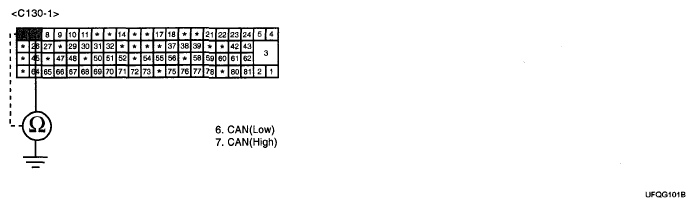

    Fig 1: Measuring Resistance Between Terminal 7 Of PCM Harness Connector And Chassis Ground
    G04810940Courtesy of HYUNDAI MOTOR CO.
  3. Is resistance within the specification?

    YES  : --> Go to next step as below.

    NO  : --> Repair CAN communication line for a short to ground. And then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
