4WD ECM DTC Index
WARNING: This page is about a different variant/trim than selected.
DTC TROUBLESHOOTING CHART

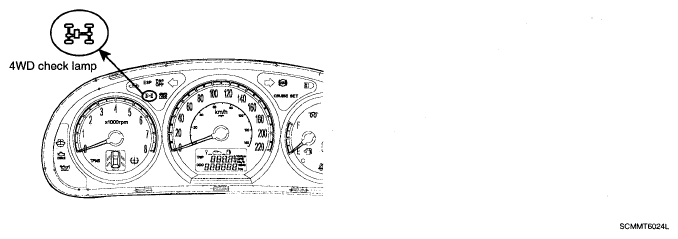

| DTC CODE | DESCRIPTION | 4WD MIL | REMARK |
|---|---|---|---|
| P0120 | TPS LOSS OF SIGNAL | • | |
| P1717 | STEER 1 INPUT SIGNAL | • | |
| P1718 | STEER 2 INPUT SIGNAL | • | |
| P1719 | STEER N INPUT SIGNAL | • | |
| P1728 | EMC-OPEN/SHORT TO BATTERY | • | |
| P1745 | ECU INVALID PART NUMBER | • | |
| P1750 | FRONT LEFT SPEED SENSOR (FL)-With ESC, ABS | • | |
| P1751 | FRONT RIGHT SPEED SENSOR (FR)-With ESC, ABS | • | |
| P1752 | REAR LEFT SPEED SENSOR (RL)-With ESC, ABS | • | |
| P1753 | REAR RIGHT SPEED SENSOR (RR)-With ESC, ABS | • | |
| P1769 | TIRE SIZE FAULT | X | |
| P1770 | ECU LOCK MODE THERMAL PROTECT | X | |
| P1771 | ECU SHUTDOWN THERMAL PROTECT | • | |
| P1780 | TORQUE CONTROL SIGNAL FAILURE | • | |
| U0001 | CAN BUS OFF | • | |
| U0100 | CAN MI-COM OR CIRCUIT MALFUNCTION | • | |
| U0101 | TCU-ITM CAN COMMUNICATION. LINE | • | |
| U0121 | ABS-ITM CAN COMMUNICATION. LINE. LINE | X | |
| U0122 | ESC-ITM CAN COMMUNICATION. LINE. LINE | • | |
| U0126 | SAS-ITM CAN COMMUNICATION. LINE. LINE | • |
