Control Algorithm Flow Chart

WARNING: This page is about a different variant/trim than selected.

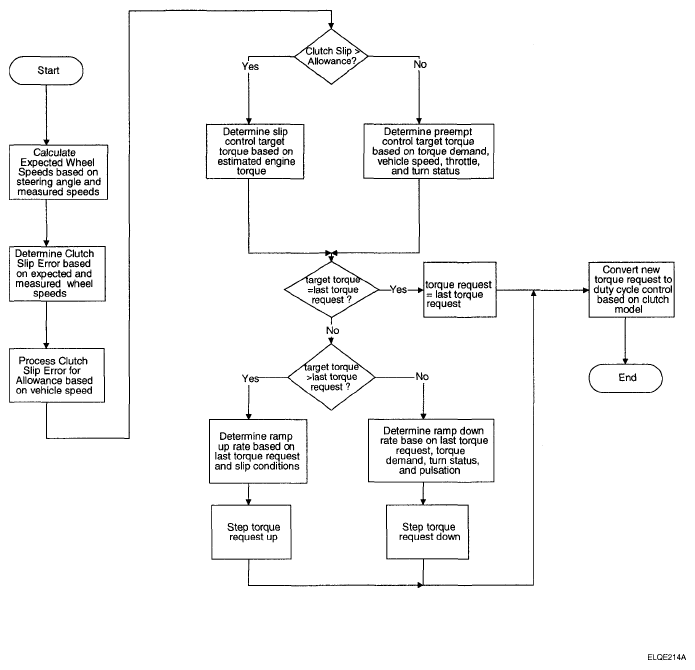

The base control algorithm of the ITM ECM is defined by the following flowchart:

Fig 1: Control Algorithm Flow Chart
G05348244Courtesy of HYUNDAI MOTOR CO.
