Component Inspection

WARNING: This page is about a different variant/trim than selected.

IG "OFF" & ENG "OFF".
EMC connector: Disconnect.
Measure the resistance (Component side) between terminals "1" and "2" of the "Electric Magnet Valve Clutch".
Specification : Approx. 1.8 ~ 2.2 Ω

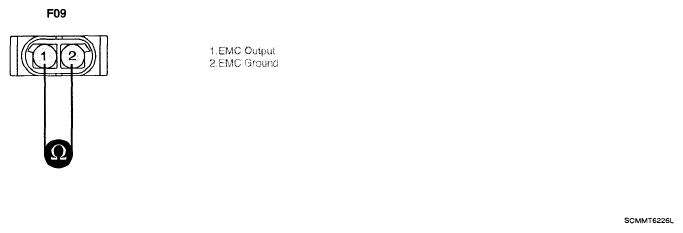

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of Electric Magnet Valve Clutch
Courtesy of HYUNDAI MOTOR CO.
Is resistance display near the specified value?
YES
- Substitute with a known-good "TCCU" and check for proper operation. If the problem is corrected, replace "TCCU" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good "EMC coil" and check for proper operation. If the problem is corrected, replace "EMC coil" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
