Heater Control Unit Replacement

WARNING: This page is about a different car, the 2007 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center pascia panel. (Refer to LOWER PANEL REPLACEMENT  )
  2. After loosening the heater control mounting screw, remove the heater control unit (A).

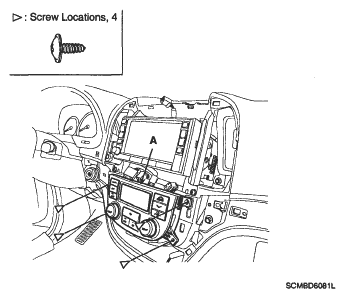

    Fig 1: Identifying Heater Control Unit
    G05350961Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the connector (A).

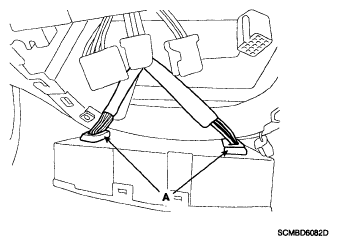

    Fig 2: Identifying Heater Control Unit Connector
    G05350962Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
