Floor Console Replacement

WARNING: This page is about a different car, the 2007 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When prying with a flat-tipped screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
Put on gloves to protect your hands.

[AT]

Remove the knob (A).

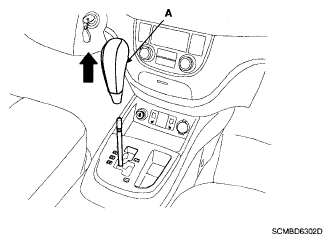

Fig 1: Identifying Knob
Courtesy of HYUNDAI MOTOR CO.
Remove the console under cover (A).

Fig 2: Identifying Console Under Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

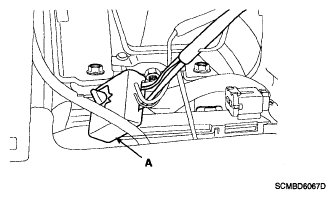

Fig 3: Identifying Floor Console Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the console mounting screw, remove the floor console side cover (A).

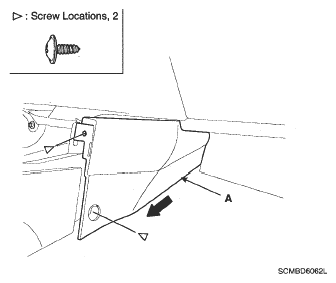

Fig 4: Identifying Floor Console Side Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the armrest lower met (A).

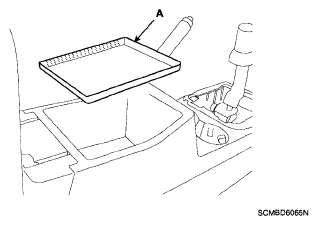

Fig 5: Identifying Armrest Lower Met
Courtesy of HYUNDAI MOTOR CO.

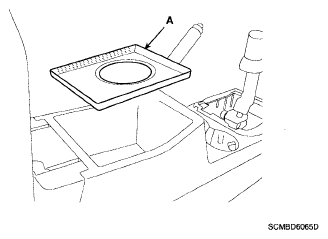

Remove the storage box console cover (A).

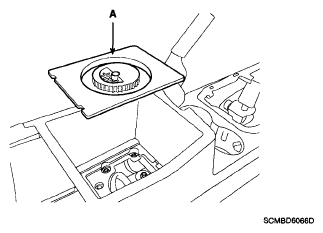

Fig 6: Identifying Storage Box Console Cover
Courtesy of HYUNDAI MOTOR CO.

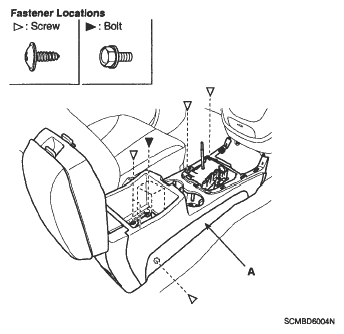

After loosening the console mounting bolts and screws remove the floor console assembly (A).

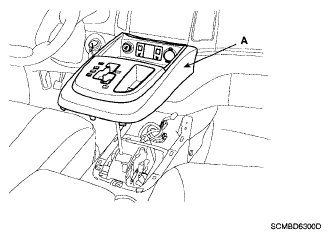

Fig 7: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (A).

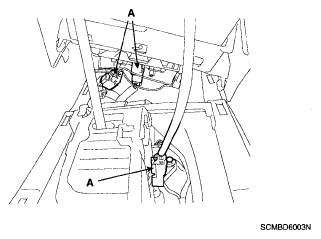

Fig 8: Identifying Floor Console Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.

[MT]

Remove the console upper cover (A).
Disconnect the connector (B).

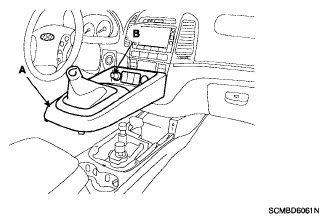

Fig 9: Identifying Console Upper Cover And Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the console mounting screw, then remove the floor console side cover (A).

Fig 10: Identifying Floor Console Side Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the armrest lower met (A).

Fig 11: Identifying Armrest Lower Met
Courtesy of HYUNDAI MOTOR CO.
Remove the storage box console cover (A).

Fig 12: Identifying Storage Box Console Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connectors (A).

Fig 13: Identifying Floor Console Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the console mounting bolts and screws, then remove the floor console assembly (A).

Fig 14: Identifying Floor Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
