Armrest Replacement

WARNING: This page is about a different car, the 2007 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console.(Refer to ARMREST REPLACEMENT )
After remove the rear console cover (A).

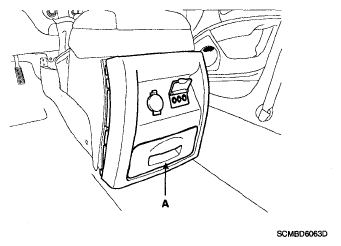

Fig 1: Identifying Rear Console Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

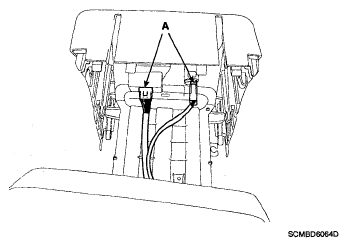

Fig 2: Identifying Armrest Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the armrest mounting nuts, remove the armrest (A).

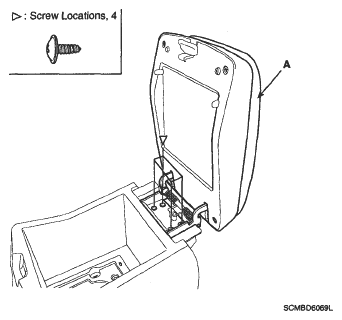

Fig 3: Identifying Armrest
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
