Audio Unit: Replacement

Disconnect the negative (-) battery terminal.

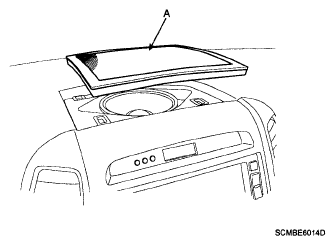

Remove the crash pad center speaker grill (A).
(Refer to the CRASH PAD ).

Fig 1: Locating Crash Pad Center Speaker Grill
Courtesy of HYUNDAI MOTOR CO.

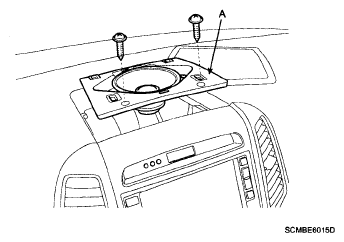

Remove the crash pad center speaker (A) after loosening the screws. Avoid damaging retaining clips.

Fig 2: Locating Crash Pad Center Speaker
Courtesy of HYUNDAI MOTOR CO.

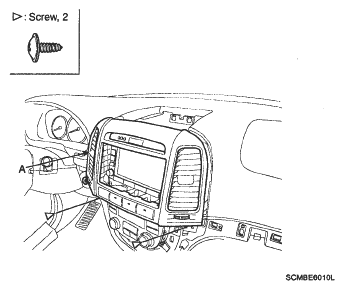

Remove the center facia panel (A) after loosening the screws.
(Refer to the CRASH PAD ).

Fig 3: Locating Center Facia Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the connectors.

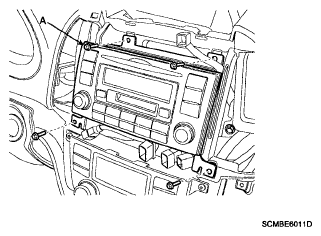

Remove the mounting bolts then remove the audio unit (A).

Fig 4: Locating Audio Unit
Courtesy of HYUNDAI MOTOR CO.
Remove the audio unit after disconnecting the audio connectors and cable.
Installation is the reverse of removal.
