Home >> Hyundai >> 2008 >> Santa Fe GLS, FWD, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Cruise Control Main Switch >> Removal And Installation

Removal And Installation

  1. Disconnect the battery (-) terminal.
  2. Remove the driver side air bag module. (Refer to )
  3. Disconnect the cruise control switch connector (B) and then remove the cruise control switch (A) with two screws.

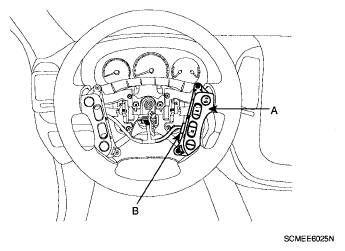

    Fig 1: Identifying Cruise Control Switch And Screws
    G05348171
  4. Installation is the reverse of removal.
