Auto Light Sensor: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the Photo & auto light sensor (B) using screw (-) driver.

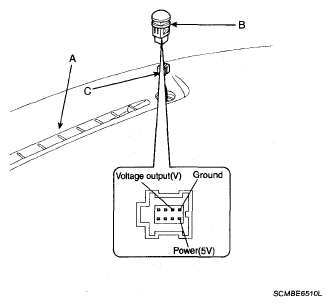

    Fig 1: Identifying Photo & Auto Light Sensor
    G05353589Courtesy of HYUNDAI MOTOR CO.
  3. Remove the auto light connector (C).
  4. Installation is the reverse of removal.
