Audio Unit: Components

Fig 1: Identifying Audio Unit Components (1 Of 7)

G05351126

Courtesy of HYUNDAI MOTOR CO.

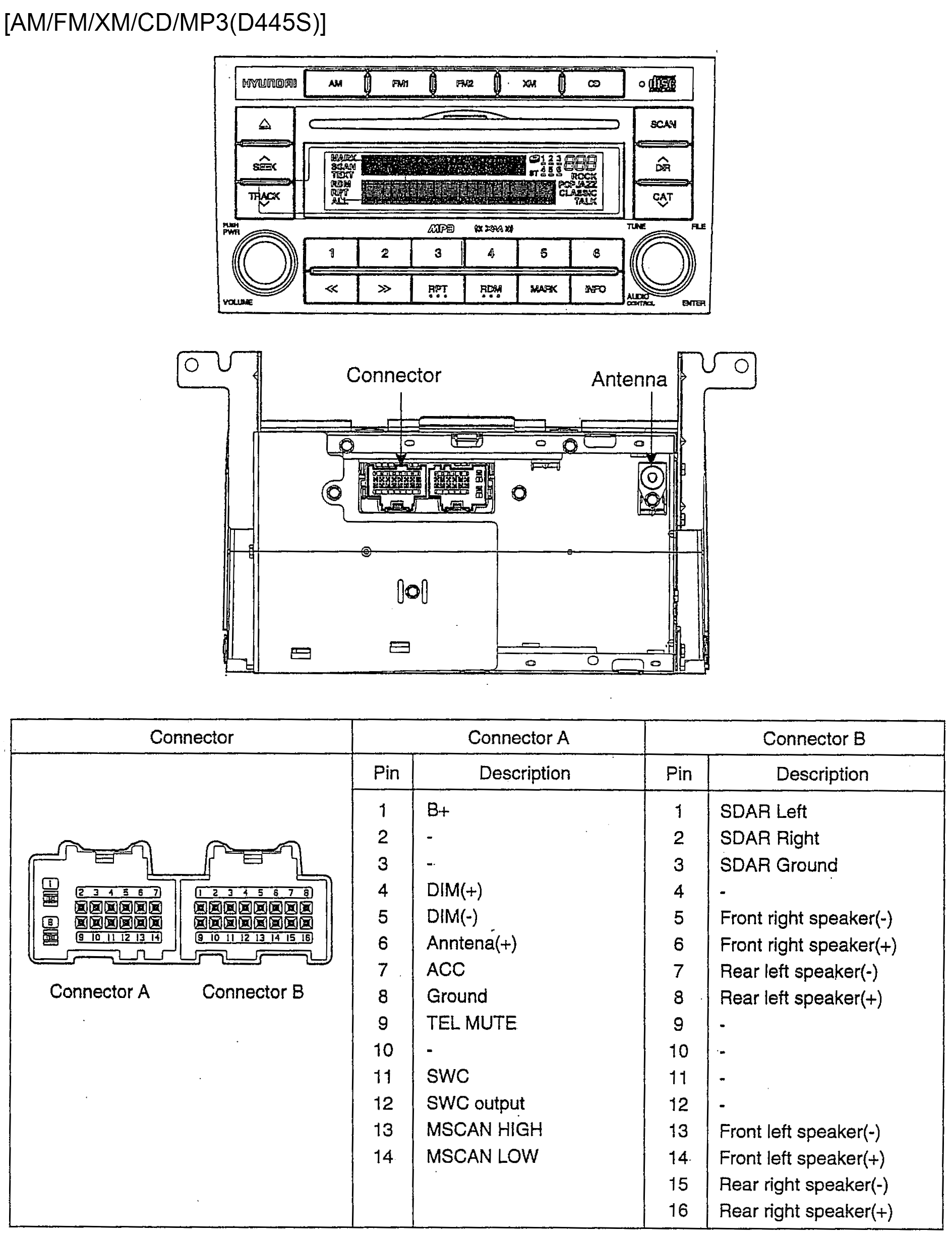

Fig 2: Identifying Audio Unit Components (2 Of 7)

G00465159

Courtesy of HYUNDAI MOTOR CO.

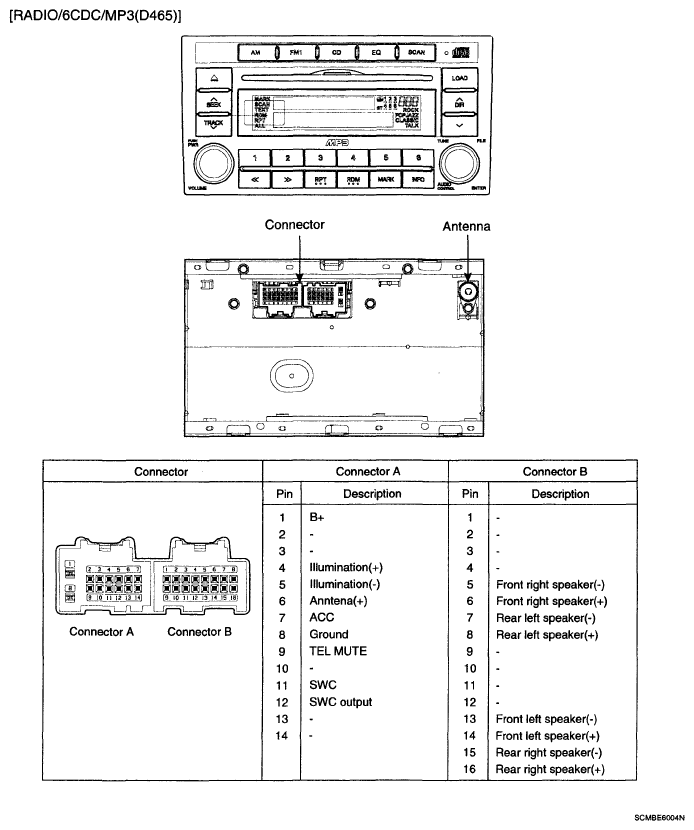

Fig 3: Identifying Audio Unit Components (3 Of 7)

G05351127

Courtesy of HYUNDAI MOTOR CO.

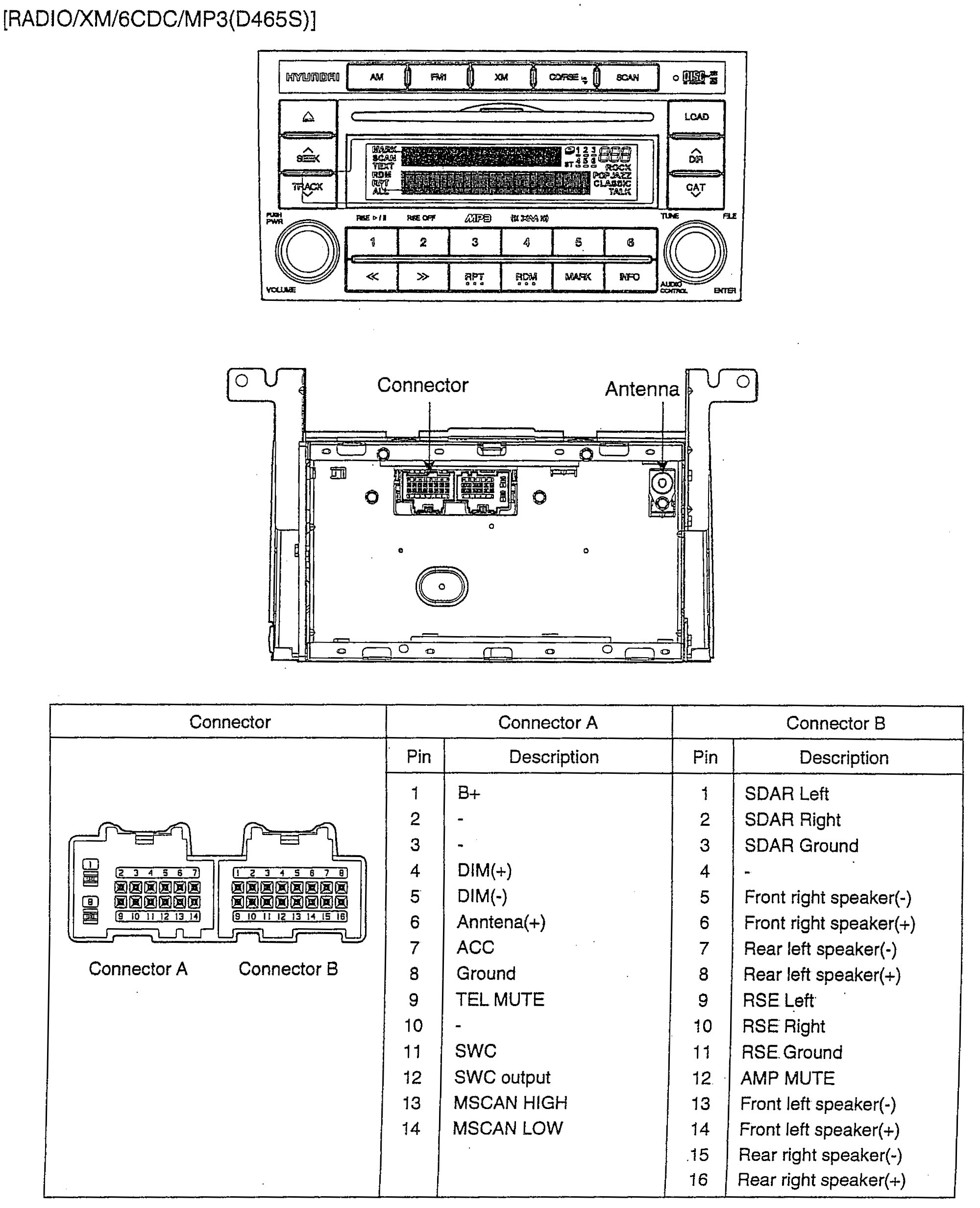

Fig 4: Identifying Audio Unit Components (4 Of 7)

G00465160

Courtesy of HYUNDAI MOTOR CO.

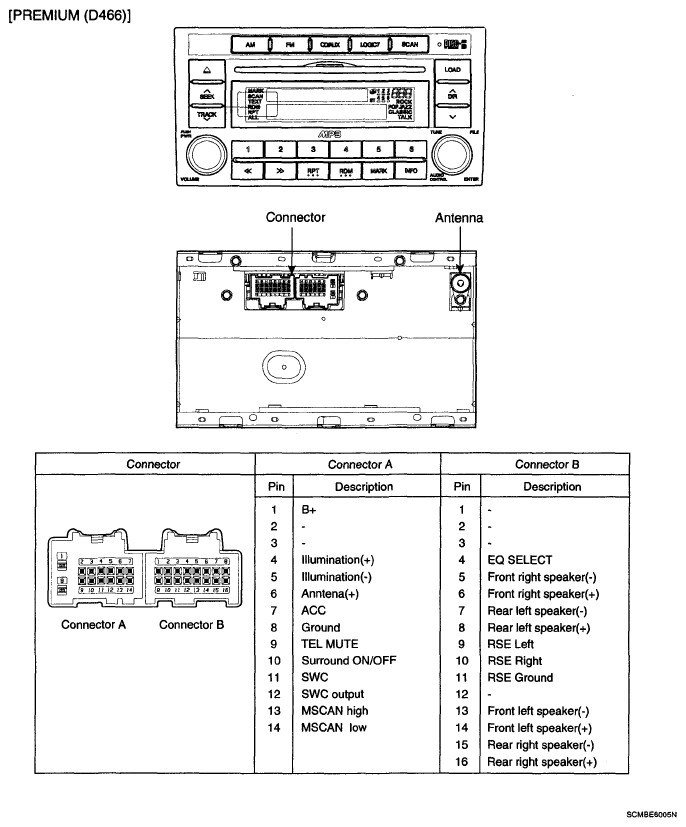

Fig 5: Identifying Audio Unit Components (5 Of 7)

G05351128

Courtesy of HYUNDAI MOTOR CO.

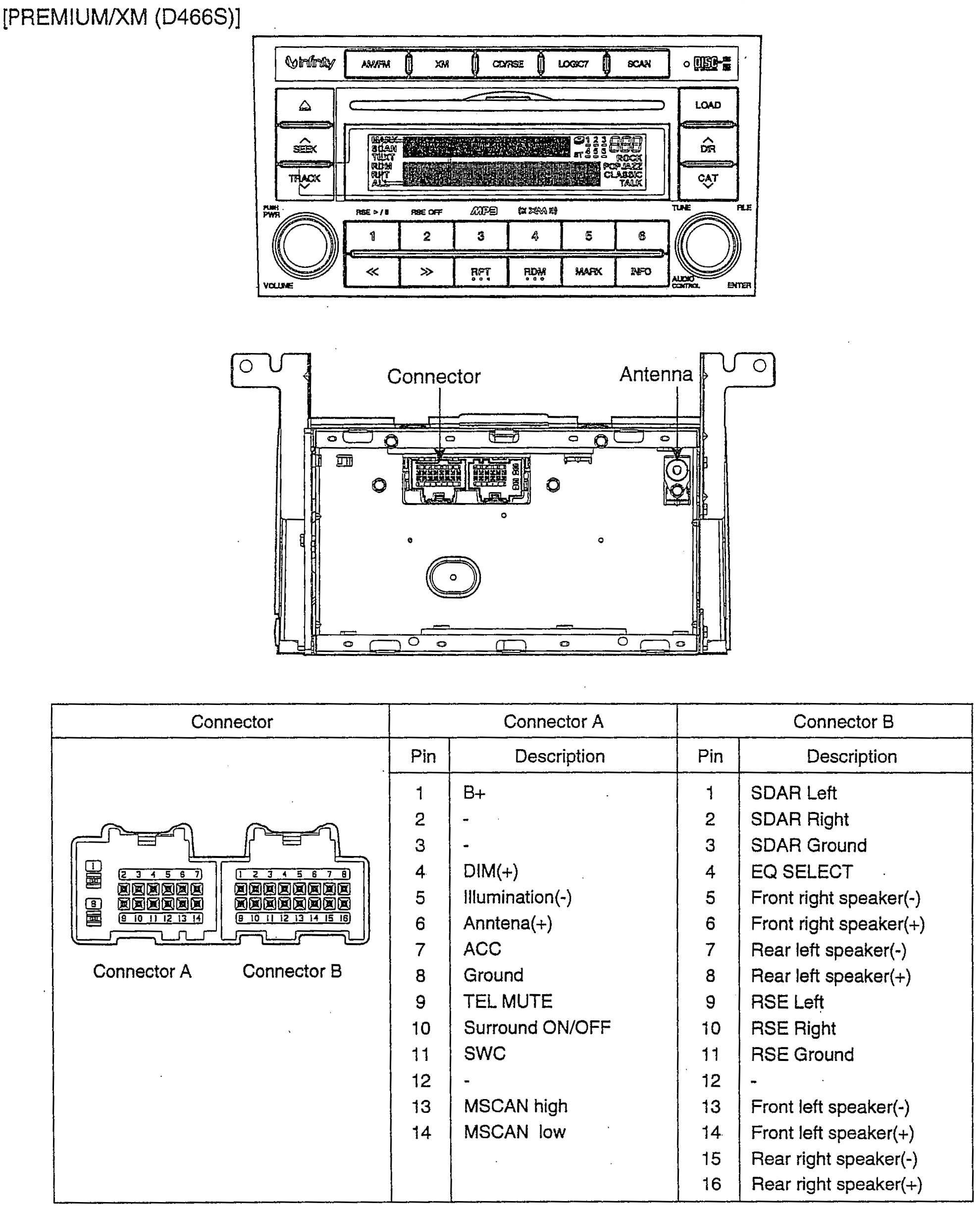

Fig 6: Identifying Audio Unit Components (6 Of 7)

G00465161

Courtesy of HYUNDAI MOTOR CO.

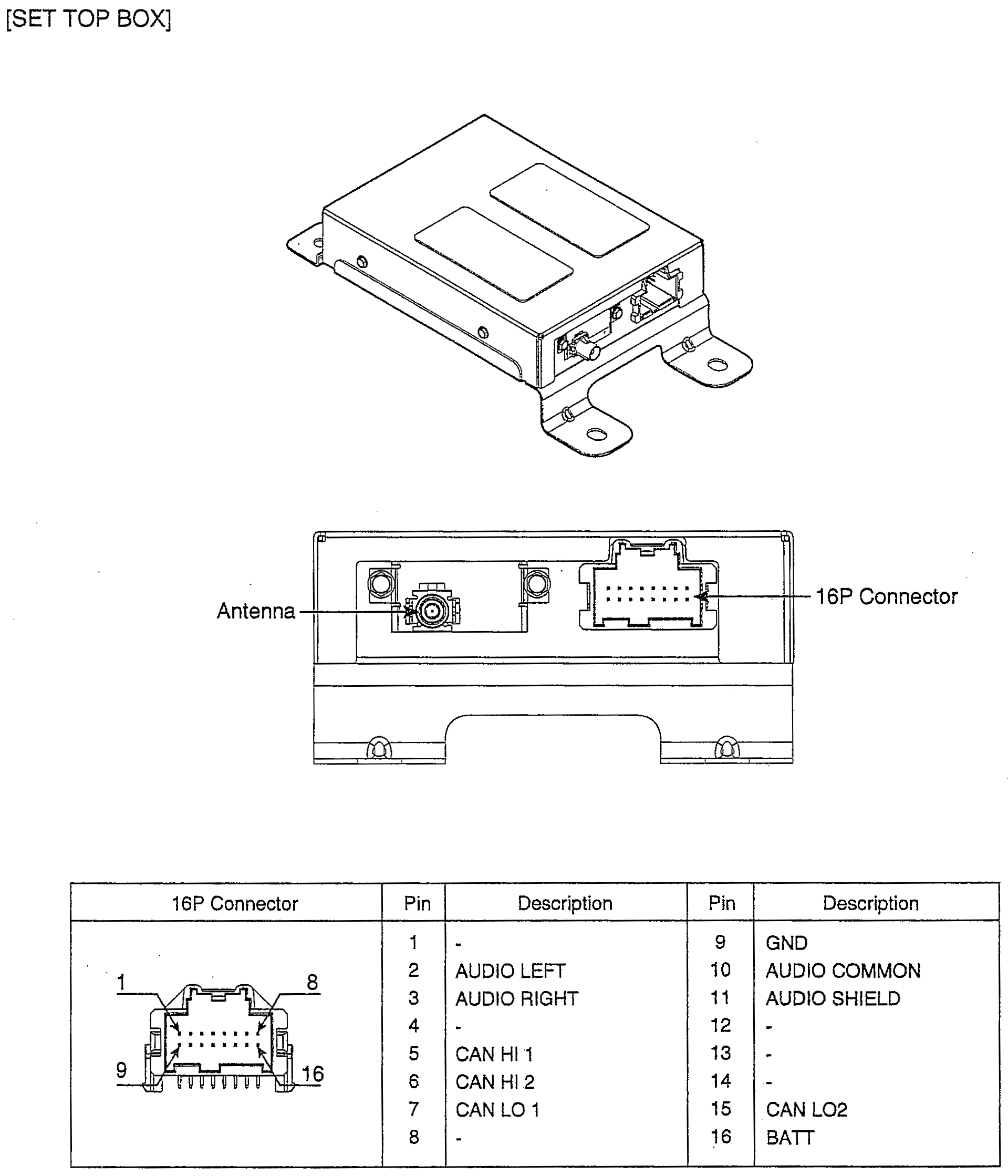

Fig 7: Identifying Audio Unit Components (7 Of 7)

G00465162

Courtesy of HYUNDAI MOTOR CO.
