Circuit Diagram
Circuit Diagram

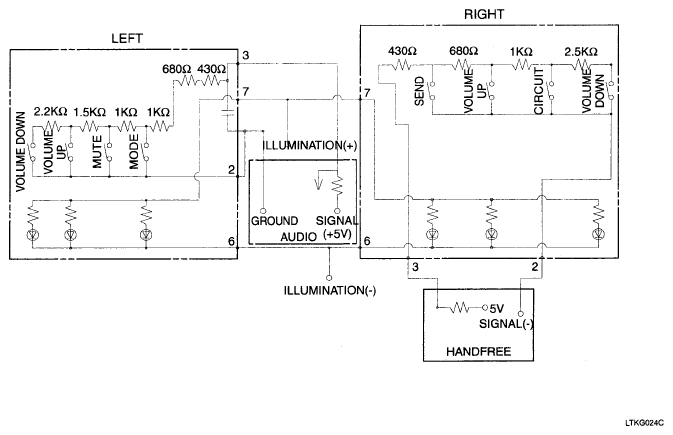

Fig 1: Audio Remote Control - CIRCUIT DIAGRAM
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
