Engine Block: Components

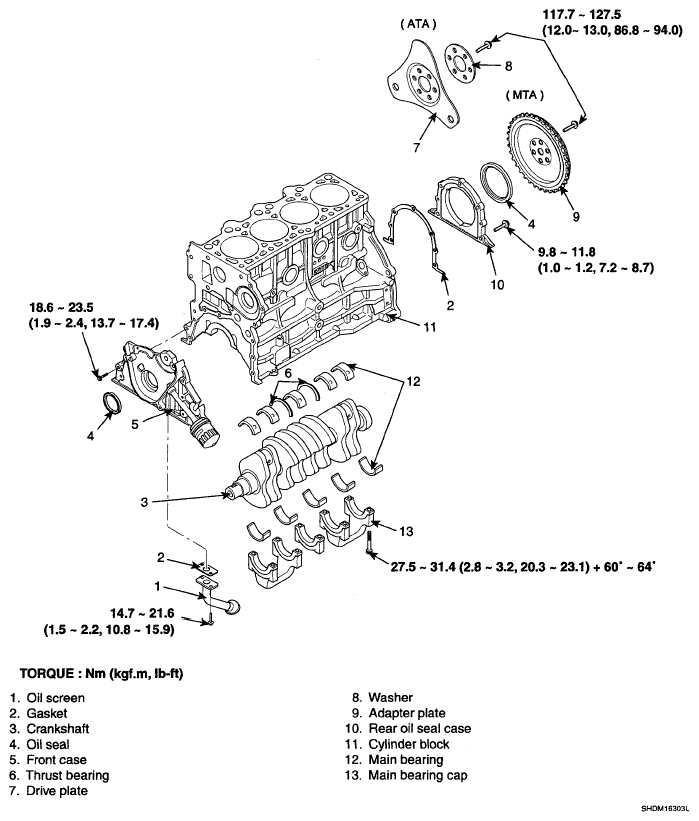

Fig 1: Engine Block Replacement Components With Torque Specifications (1 Of 2)
G05363513Courtesy of HYUNDAI MOTOR CO.

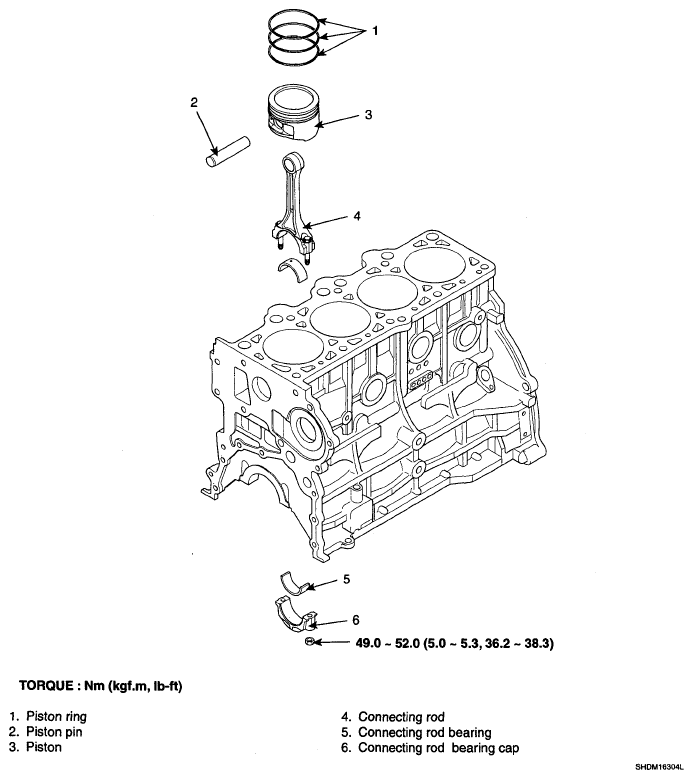

Fig 2: Engine Block Replacement Components With Torque Specifications (2 Of 2)
G05363514Courtesy of HYUNDAI MOTOR CO.
