Seat Belt Warning Function

  1. Seat belt indicator and BUZZER every 1sec for 6sec when IGN is ON.
  2. Seat belt indicator and Chime Buzzer stop When IGN1 OFF.
  3. Seat Belt SW ON and Chime Buzzer are directly stop, Seat Belt indicator work for remainder Time When Seat Belt SW ON.
  4. IF Seat belt indicator is unfastened, Chime Buzzer sounds is work always for 6s after fastening SEAT BELT, when IGN is ON in the state.

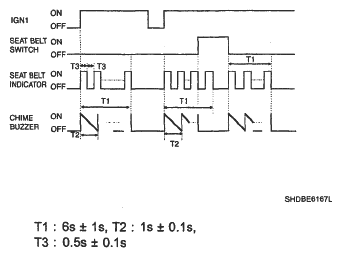

    Fig 1: Seat Belt Warning Graph
    G05365391Courtesy of HYUNDAI MOTOR CO.
