Home >> Hyundai >> 2008 >> Elantra GLS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle System (A4CF2) >> Automatic Transaxle System >> Automatic Transaxle >> Components (2)

Components (2)

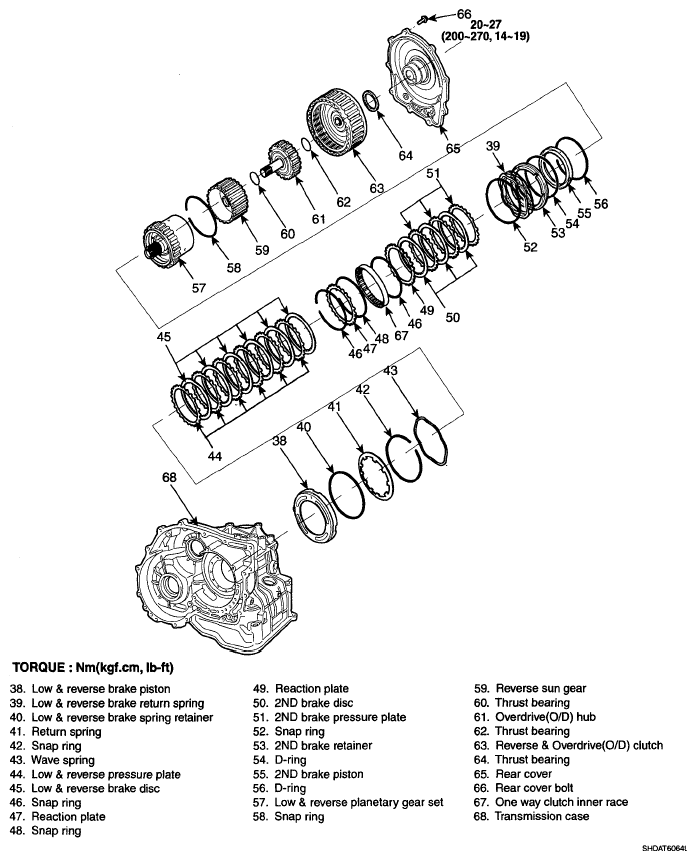

Fig 1: Identifying Automatic Transaxle Components (2 Of 2)

G05364199
