Rear Hub/Axle: Components

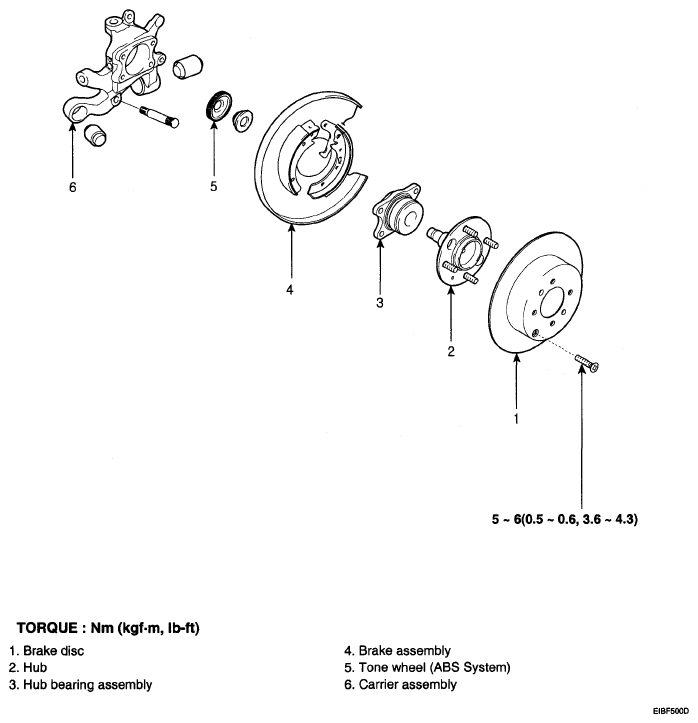

Fig 1: Rear Hub/Axle Replacement Components With Torque Specifications

G04880328

Courtesy of HYUNDAI MOTOR CO.
