Front Driveshaft Assembly: Inspection

  1. Check the driveshaft boots for damage and deterioration.
  2. Check the splines for wear and damage.
  3. Check the ball joints for wear and operating condition.
  4. Check the boots for damage and deterioration.

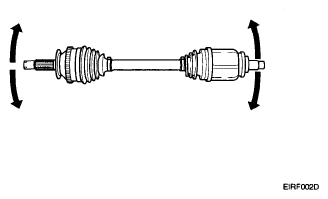

    Fig 1: Checking Driveshaft Operation
    G04880277Courtesy of HYUNDAI MOTOR CO.
