Automatic Transaxle: Components

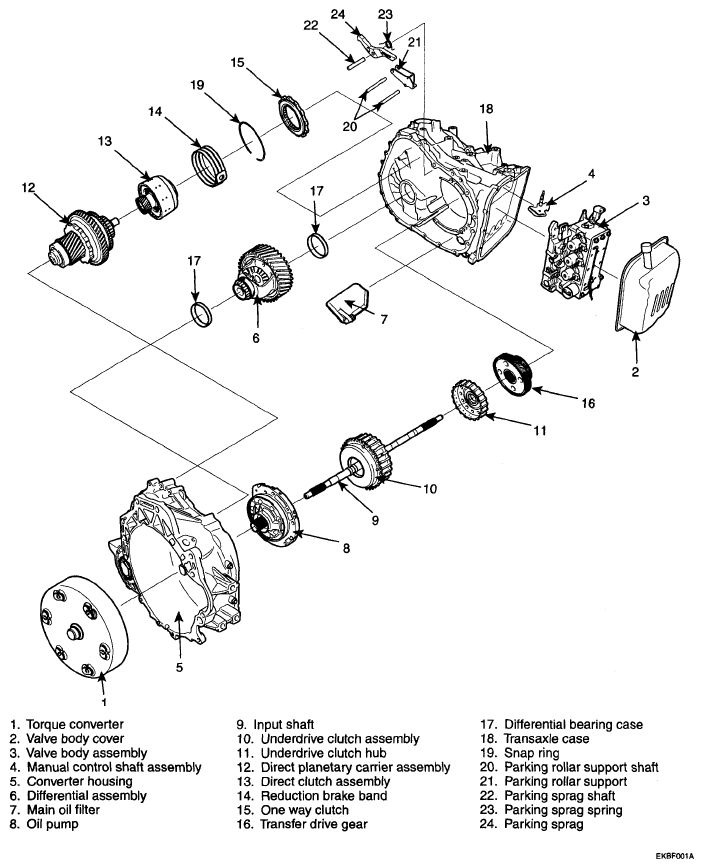

Fig 1: Identifying Automatic Transaxle Components (1 Of 2)
G04880193Courtesy of HYUNDAI MOTOR CO.

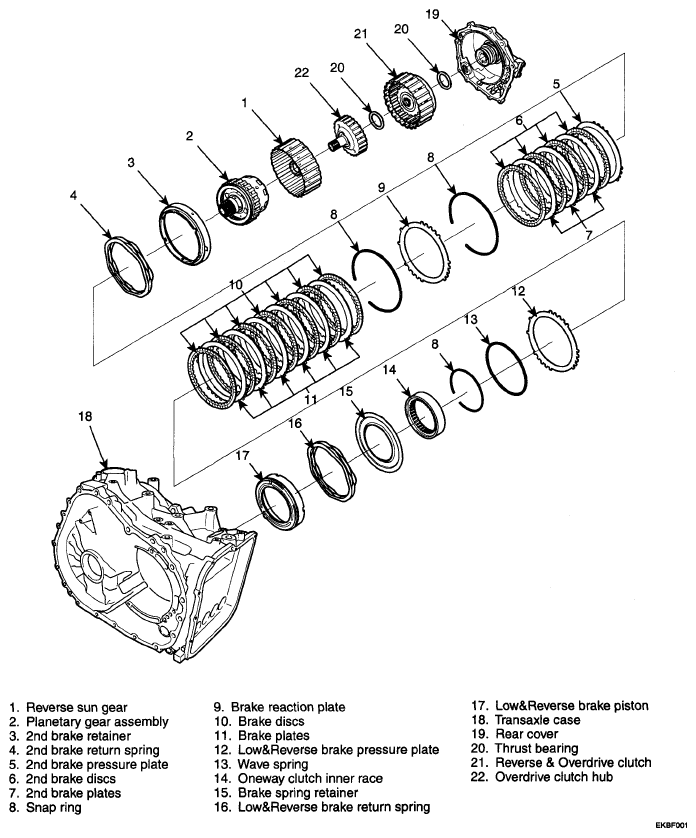

Fig 2: Identifying Automatic Transaxle Components (2 Of 2)
G04880194Courtesy of HYUNDAI MOTOR CO.
