Components and Components Location: Components

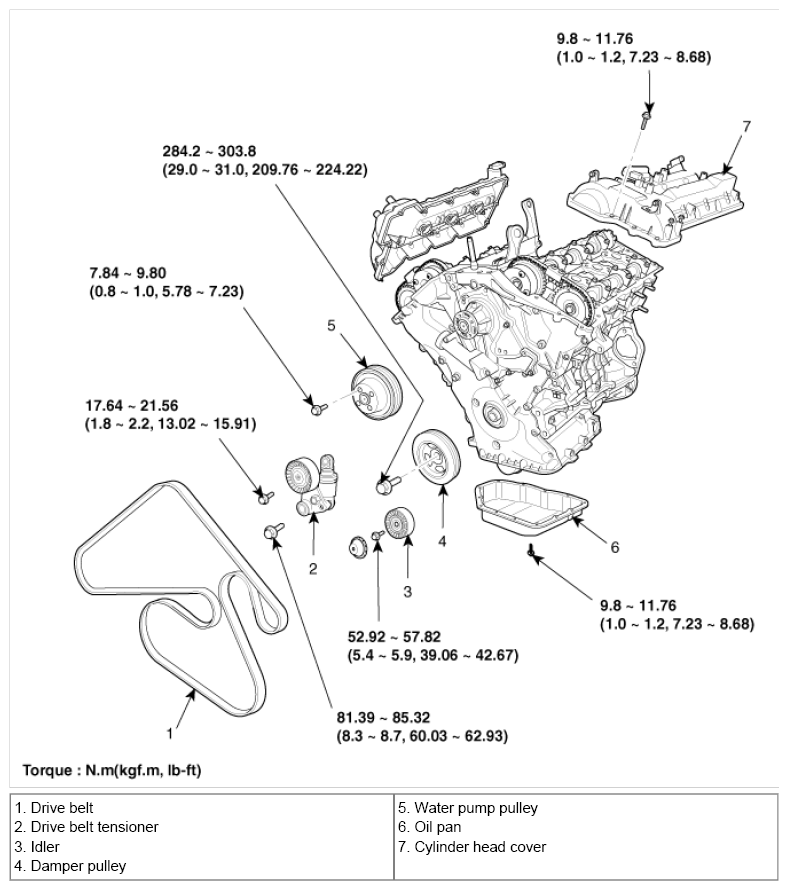

Fig 1: Engine Timing System Replacement Components With Torque Specifications (1 Of 2)
G07759215

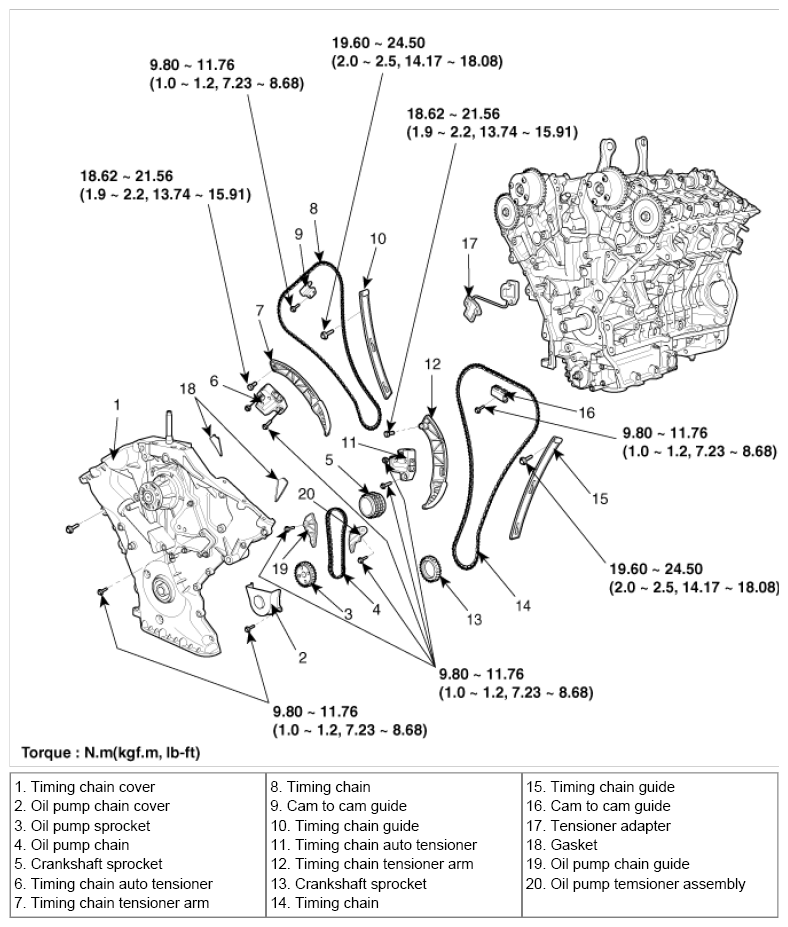

Fig 2: Engine Timing System Replacement Components With Torque Specifications (2 Of 2)
G07759216
