Monitor SCANTOOL Data

  1. Connect scantool to data link connector(DLC).
  2. Engine "ON".
  3. Monitor the "ENGINE SPEED, INPUT SPEED SENSOR(PG-A), OUTPUT SPEED SENSOR(PG-B), GEAR POSITION" parameter on the scantool.
  4. Perform the "STALL TEST" at gear position "2"

    Specification: 2400 ~ 2800 engine rpm

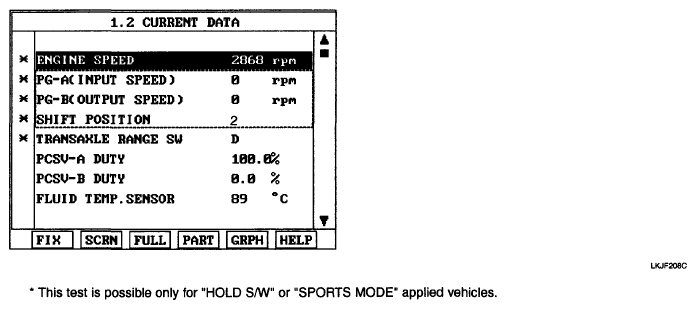

    Fig 1: Scan Tool Display - Engine Speed
    G04802100Courtesy of HYUNDAI MOTOR CO.

    OPERATING ELEMENT OF EACH SHIFTING RANGE

    GEAR SHIFTING REFERENCE CHART

    Selector lever position Overdrive control switch Shifting gear Engine start Parking Mechanism Clutch Brake
    C1 C2 C3 OWC B1 B2
    P - Neutral Possible O
    R - Reverse     O
    N - Neutral Possible             O
    D ON 1st       O   O
    2nd       O     O
    3rd     O O O
    4th         O   O
    D OFF 1st       O   O
    2nd       O     O
    3rd     O O O
    2 - 1st       O   O
    2nd       O     O
    L - 1st       O       O

    C1: Front clutch

    C2: Rear clutch

    C3: End clutch

    OWC: One way clutch

    B1: Kickdown brake

    B2: Low & reverse brake

    Stall test procedure in D2 and reason

    Procedure

    1. Warm up the engine
    2. After positioning the select lever in "D" and "ON" of the HOLD SW.
    3. Depress the foot brake pedal fully after that, depress the accelerator pedal to the maximum.

    * The slippage of 2nd gear operating parts can be detected by stall test in D2.

    Reason for stall test

    1. If there is no mechanical defaults in A/T, all slippage occurs in torque converter.
    2. Therefore, engine revolution is output, but input and output speed revolution must be "zero" due to wheel's lock.
    3. If 2nd gear operating part has faults, input speed revolution will be out of specification.
    4. If output speed revolution is output. It means that the foot brake force is not applied fully. Remeasuring is required.
  5. Is "STALL TEST" within specification?

    YES  : --> Go to "W/Harness inspection" procedure.

    NO  : --> Go to "COMPONENT INSPECTION " procedure.

CAUTION:
  • Do not let anybody stand in front of or behind the vehicle while this test is being carried out.
  • Check the A/T fluid level and temperature and the engine coolant temperature.
    • Fluid level: At the hot mark on the oil level gauge.
    • Fluid temperature: 176 °F ~ 212 °F (80 ~ 100 °C).
    • Engine coolant temperature: 176 °F~212 °F (80 ~ 100 °C).
  • Chock both rear wheel(left and right).
  • Pull the parking brake lever on with the brake pedal fully depressed.
  • The throttle should not be left fully open for more than eight seconds.
  • If carrying out the stall test two or more times, move the select lever to the "N" position and run the engine at 1,000 rpm to let the A/T fluid cool down before carrying out subsequent test.

* Perform stall test on "L" range If the result of stall test on "D" range is out of specifications.

"One Way Clutch" is faulty If the result of stall test on "L" range is within specifications.
