Seat Track Replacement

  1. Remove the seat back panel (See SEAT BACK FRAME REPLACEMENT  ).
  2. Remove the recliner cover, knob and height knob (See RECLINER COVER, KNOB AND HEIGHT KNOB REPLACEMENT  ).
  3. Remove the seat back assembly (See SEAT BACK COVER REPLACEMENT  ).
  4. Remove the seat cushion (See SEAT CUSHION COVER REPLACEMENT  ).
  5. Remove the seat assembly (A).

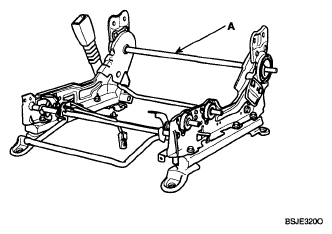

    Fig 1: Identifying Seat Assembly
    G04802816Courtesy of HYUNDAI MOTOR CO.
  6. Installation is the reverse of removal.
NOTE:

After installing the OCS, confirm proper system operation: Turn the ignition witch ON, the SRS indicator should be turned on for about six seconds and then go off. Telltale lamp will turn on for 4 seconds and be turned off afterward. (Refer to RESTRAINTS .)
