Home >> Hyundai >> 2007 >> Veracruz SE, FWD >> Repair and Diagnosis >> Transmission >> Automatic Transaxle System (F21) >> Automatic Transaxle System >> DTC P0780 Shift Error >> Schematic Diagram

Schematic Diagram

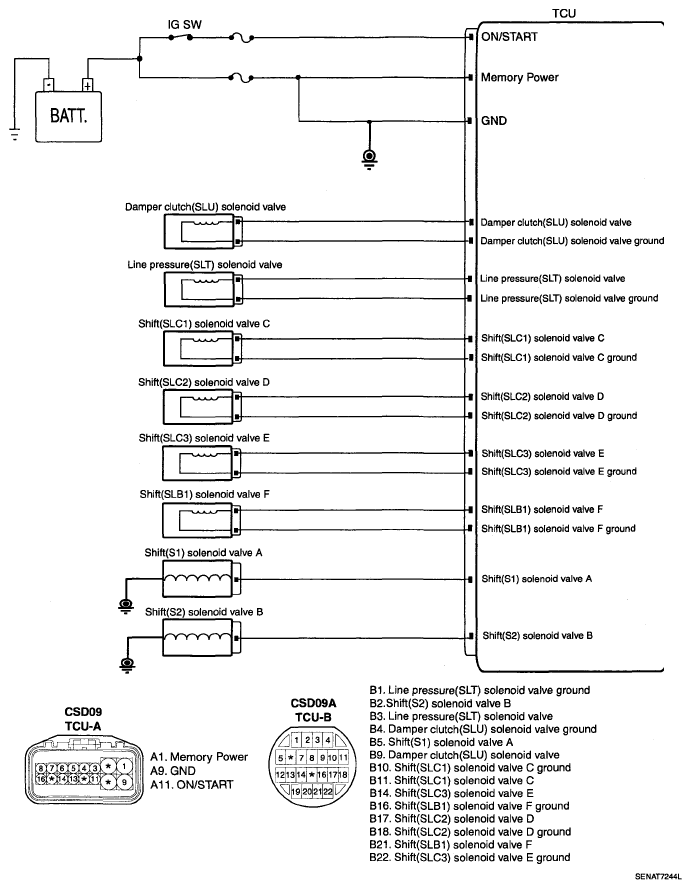

Fig 1: TCC Solenoid Valve (SLU) - Schematic Diagram

G05330242

Courtesy of HYUNDAI MOTOR CO.
