Specification Of Each Solenoid

3-WAY SOLENOID (S1, S2)

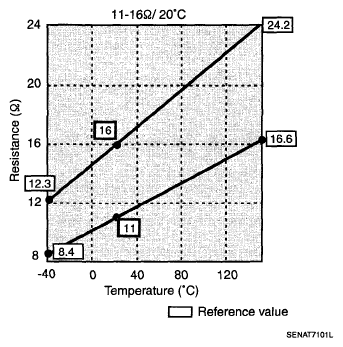

Fig 1: [Solenoid Valve Resistance And Temperature Graph]
G05330359Courtesy of HYUNDAI MOTOR CO.

SHIFT CONTROL SOLENOID

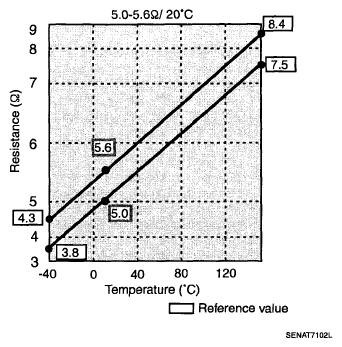

Fig 2: [Solenoid Valve Resistance And Temperature Graph]
G05330360Courtesy of HYUNDAI MOTOR CO.
