Adjusting The Shift Cable

  1. Set the room side lever and the manual lever to "N" position.
  2. Push the shift cable lightly to "F" direction shown to eliminate the free play.

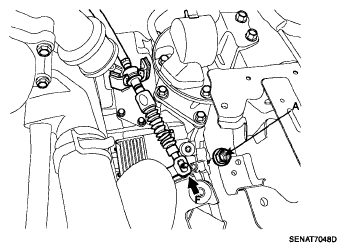

    Fig 1: Identifying Shift Cable And Nut
    G05330423Courtesy of HYUNDAI MOTOR CO.
  3. Tighten the adjusting nut (A).

    TORQUE : 8-12 Nm (0.8-1.2 kgf.m, 5.8-8.7 lb-ft)

  4. Check that this part operates surely at each range of the manual lever corresponding to each position of the room lever.
