Front Strut Assembly: Installation

Install the front strut assembly to the wheel housing panel by tightening the mounting nuts (A).
Tightening torque Nm (kgf.m, lb-ft): 45 ~ 60, (4.5 ~ 6.0, 33 ~ 43)

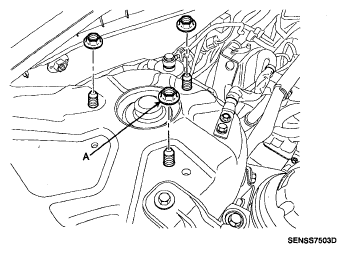

Fig 1: Identifying Strut Upper Mounting Nuts
Courtesy of HYUNDAI MOTOR CO.
Connect the front strut assembly with the knuckle by tightening the bolt & nut (B).
Tightening torque Nm (kgf.m, lb-ft): 15.5 ~ 17.5 (15.5 ~ 17.5, 112.~ 127)
Connect the stabilizer link (A) with front strut assembly and then tighten the nut.
Tightening torque Nm (kgf.m, lb-ft): 100 ~ 120 (10.0 ~ 12.0, 72 ~ 87)

Fig 2: Identifying Front Stabilizer Link And Knuckle Nuts
Courtesy of HYUNDAI MOTOR CO.
Install the wheel speed sensor cable to front strut assembly.

Fig 3: Identifying Wheel Speed Sensor Cable
Courtesy of HYUNDAI MOTOR CO.
Install the front wheel & tire.
Tightening torque Nm (kgf.m, lb-ft): 90 ~ 110 (9.0 ~ 11.0, 65 ~ 80)
