Front Hub/Knuckle: Installation

Install the hub and knuckle assembly.
Install the wheel speed sensor (B), the strut lower mounting bolt (C) and the lower arm mounting bolt (D) from the knuckle (A).
Tightening torque Nm (kgf-m, lb-ft):

Wheel speed sensor (B): 6.9~10.8 (0.7~1.1, 5.1~8.0)

Bolts (C): 152.0~171.6 (15.5~17.5, 112.1~126.6)

Bolt (D) : 98.1~117.7 (10~12, 72.3~86.8)

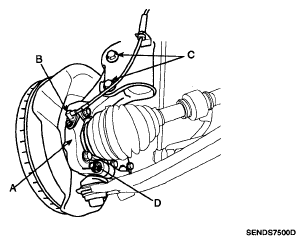

Fig 1: Identifying Wheel Speed Sensor, Strut Lower Mounting Bolt And Lower Arm Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Install the tie rod end ball joint (C) to the knuckle (D).
Install the castle nut (B) and the split pin (A).
Tightening torque Nm (kgf-m, lb-ft): 23.5~33.3 (2.4~3.4, 17.4~24.6)

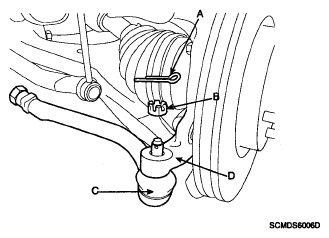

Fig 2: Identifying Split Pin, Castle Nut Ball Joint And Knuckle
Courtesy of HYUNDAI MOTOR CO.
Install the brake caliper (B) and then tighten the mounting bolts (A).
Tightening torque Nm (kgf-m, lb-ft): 73.5~83.4 (7.5~8.5, 54.2~61.5)

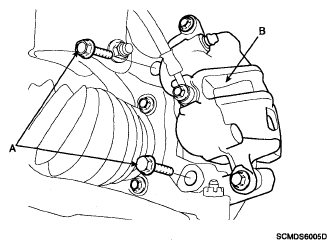

Fig 3: Identifying Brake Caliper Assembly And Brake Caliper Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the washer (C), castle nut (B) and split pin (A) to the front hub assembly.
Tightening torque Nm (kgf-m, lb-ft): 196.1~274.6 (20~28, 144.7~202.5)

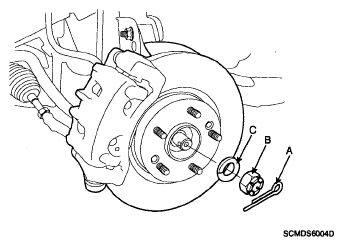

Fig 4: Identifying Split Pin, Castle Nut And Washer
Courtesy of HYUNDAI MOTOR CO.

CAUTION: The washer (C) should be assembled with convex surface outward when installing the castle nut (B) and split pin (A).

Fig 5: Identifying Castle Nut, Washer And Split Pin
Courtesy of HYUNDAI MOTOR CO.
Install the wheel and tire (A) to the front hub (B).
Tightening torque Nm (kgf-m, lb-ft): 88.3~107.9 (9~11, 65.1~79.6)

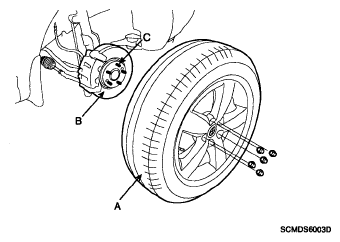

Fig 6: Identifying Front Wheel And Tire
Courtesy of HYUNDAI MOTOR CO.

CAUTION: Be careful not to damage the hub bolts (C) when installing the front wheel and tire (A).
