Front Stabilizer Bar: Components

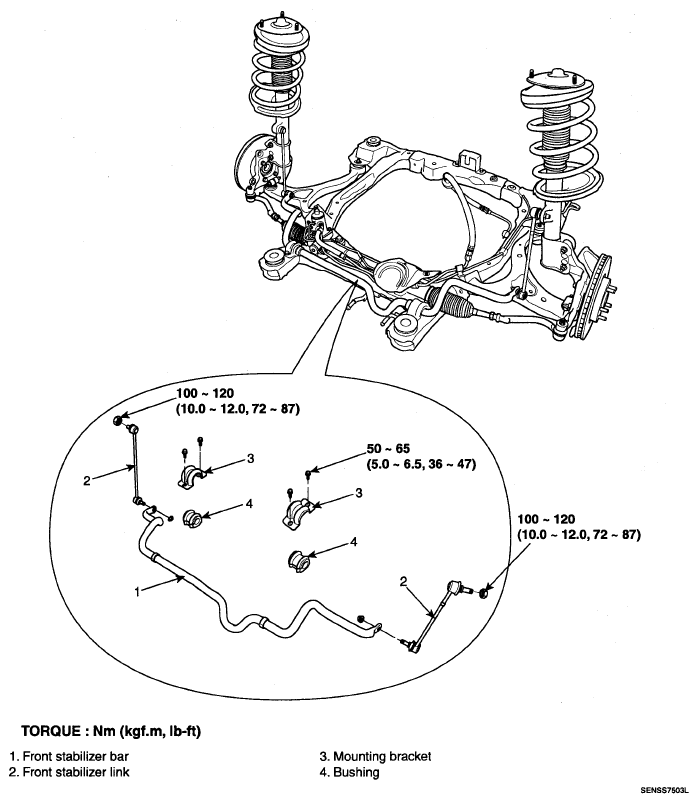

Fig 1: Front Stabilizer Bar Replacement Components With Torque Specifications

G05330561

Courtesy of HYUNDAI MOTOR CO.
