Pinion Shaft And Case: Components

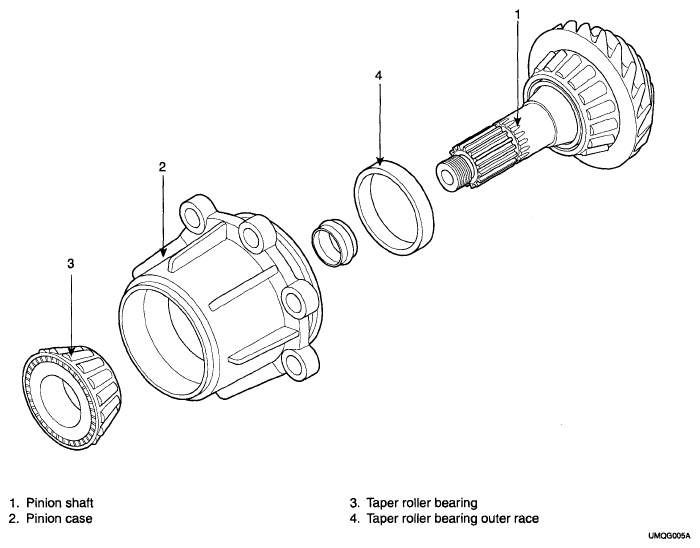

Fig 1: Identifying Pinion Shaft And Case Components

G05330486

Courtesy of HYUNDAI MOTOR CO.
