Monitor DTC Status

  1. Connect scantool to Data Link Connector (DLC).
  2. Warm up the engine to normal operating temperature.
  3. Monitor DTC (Diagnostics Trouble Code) on the scantool.

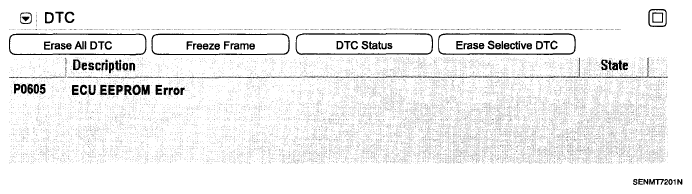

    Fig 1: Identifying Monitor Diagnostics Trouble Code On Scantool
    G05330434Courtesy of HYUNDAI MOTOR CO.
  4. Is the same DTC displayed again?

    YES:

    • Substitute with a known-good "4WD-ECM" and check for proper operation. If the problem is corrected, replace "4WD-ECM" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:

    • Fault is intermittent caused by poor contact in the sensor's and/or "4WD-ECM"s connector or was repaired and "4WD-ECM" memory was not cleared.

    Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.

    Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
