Coupling Assembly: Installation

  1. Temporarily install the 4WD coupling assembly to the rear differential carrier and then tighten the four mounting bolts (A).

    Torque : 60-65 Nm (6.0-6.5 kgf.m, 43.4-47.0 lb-ft)

    NOTE: Grease the drive gear of the differential carrier assembly.

    High pressure grease : KLUBER MICROLUBE GNY 202 (or equivalent) or GREASE-TRANSMISSION (MS511-55, TMG-2)

    After greasing the contacting surface, temporarily install the 4WD coupling assembly to the differential carrier assembly within 3 minutes.

    Sealant: FIPG (Formed in Place Gaskets)-B (MS721-40) or equivalent to LT5702

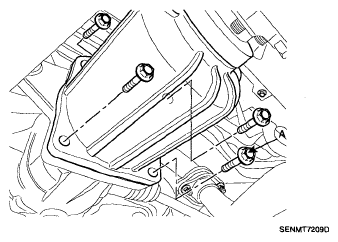

    Fig 1: Identifying Mounting Bolts
    G05330502Courtesy of HYUNDAI MOTOR CO.
  2. Install the 4WD coupling assembly to the rear propeller shaft (B) by tightening the three bolts (A).

    Torque : 50-70 Nm (5.0-7.0 kgf.m, 36.2-50.6 lb-ft)

    Fig 2: Identifying Rear Propeller Shaft Bolts
    G05330500Courtesy of HYUNDAI MOTOR CO.
  3. Connect the electric magnetic clutch connector (A).
    Fig 3: Identifying Electric Magnetic Clutch Connector
    G05330501Courtesy of HYUNDAI MOTOR CO.
