Automatic Transaxle System: Operation

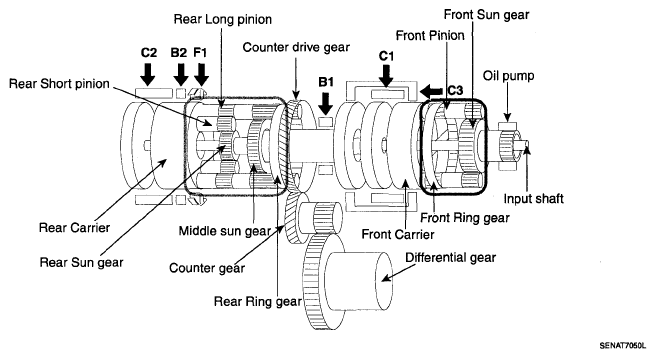

Fig 1: Sectional View Of Automatic Transaxle
G05330187Courtesy of HYUNDAI MOTOR CO.

LIST OF OPERATING COMPONENTS

LIST OF OPERATING COMPONENTS

Clutch/Brake Operation
C1 C1 Clutch Connects front planetary carrier to rear planetary rear sun gear
C2 C2 Clutch Connects intermediate shaft to rear planetary carrier
C3 C3 Clutch Connects front planetary carrier to rear planetary middle sun gear
B1 B1 Brake Locks rear planetary middle sun gear
B2 B2 Brake Locks rear planetary carrier
F1 One-way Clutch Locks counterclockwise rotation of rear planetary carrier

OPERATION OF COMPONENTS

OPERATION OF COMPONENTS

Shift position Solenoid (◦ : ON, -: OFF) Clutch Brake One-way clutch
SLC1 SLC2 SLC3 SLB1 S1 S2 C1 C2 C3 B1 B2 F1
P ◦ ◦ ◦ ◦ - - - - - - - -
R V<11 ◦ ◦ - ◦ - - - - ◦   ◦ -
V>11 ◦ ◦ ◦ ◦ ◦ ◦ - - - - - -
N ◦ ◦ ◦ ◦ - - - - - - - -
D 1st - ◦ ◦ ◦ - - ◦ - - - - ◦
E/GB - ◦ ◦ ◦ ◦ ◦ ◦ - - - ◦ ◦
2nd - ◦ ◦ - - - ◦ - - ◦ - -
3rd - ◦ - ◦ - - ◦ - ◦ - - -
4th - - ◦ ◦ - - ◦ ◦ - - - -
5th ◦ - - ◦ - - - ◦ ◦ - - -
6th ◦ - ◦ - - - - ◦ - ◦ - -
* 1) Clutch, Brake, One-way clutch; ◦ : Operating, -: not operating
2) Lock up control: operating only in between 3th-6th

PROCEDURE OF OPERATING EACH GEAR

  1. "D"-1st gear

    • Power transmission pathway [Operating components: C1, F1] Operating components:

    C1, F1 (counterclockwise rotation is locked), B2 (ON when engine brake is operating)

    PLANETARY GEAR UNIT DESCRIPTION

    Planetary gear unit Input, Locked, Output
    Front Input: Ring gear, Locked: Sun gear, Output: Carrier
    Rear Input: Rear sun gear, Locked: Carrier, Output: Ring gear
    1. Input shaft (rotates clockwise) [same revolutions as the torque converter's turbine runner]
    2. Front planetary ring gear (rotates clockwise) [same revolutions as the input shaft]
    3. Front planetary pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the front planetary sun gear is locked by the oil pump, it is pressed against the front planetary ring gear and orbits the sun gear while rotating on its axis (because the front planetary ring gear has internal gears, the rotational direction does not change)]

    4. Front planetary carrier (rotates clockwise)

      [reduction: same revolution as the front planetary pinion gear orbit revolution]

    5. C1 -CLUTCH (rotates clockwise) [connects the front planetary carrier and the rear planetary sun gear]
    6. Rear planetary sun gear (rotates clockwise) [same revolution as the front planetary carrier]
    7. Rear planetary short pinion gear (rotates counterclockwise on its axis)

      [the rear planetary carrier tries to rotate counterclockwise, but the counterclockwise rotation is locked by one-way clutch F1.]

    8. Rear planetary long pinion gear (rotates clockwise on its axis)

      [the rear planetary middle sun gear rotates counterclockwise (idling)]

    9. Rear planetary ring gear (rotates clockwise) [the rear planetary ring gear is rotated by the rear planetary long pinion gear (because the rear planetary ring gear has internal gears, the rotational direction does not change)]
    10. Counter drive gear (rotates clockwise) [because the rear planetary ring gear is installed on the counter drive gear, the rotational direction and the revolution are the same as the rear planetary ring gear]
    11. Counter driven gear (rotates counterclockwise)
    12. Differential ring gear (rotates clockwise)

      • Engine brake

      When the engine brake is operating, driving force is transmitted from the tires.

  2. "D" -2nd gear

    • Power transmission pathway [Operating components: C1, B1]

    PLANETARY GEAR UNIT DESCRIPTION

    Planetary gear unit Input, Locked, Output
    Front Input: Ring gear, Locked: Sun gear, Output: Carrier
    Rear Input: Rear Sun gear, Locked: Middle Sun gear, Output: Ring gear
    1. Input shaft (rotates clockwise) [same revolutions as the torque converter's turbine runner]
    2. Front planetary ring gear (rotates clockwise) [same revolution as the input shaft]
    3. Front planetary pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the front planetary sun gear is locked by the oil pump, it is pressed against the front planetary ring gear and orbits the sun gear while rotating on its axis (because the front planetary ring gear has internal gears, the rotational direction does not change)]

    4. Front planetary carrier (rotates clockwise) [reduction: same revolution as the front planetary pinion gear orbit revolution]
    5. C1-CLUTCH (rotates clockwise) [connects the front planetary carrier and the rear planetary sun gear]
    6. Rear planetary sun gear (rotates clockwise) [same revolution as the front planetary carrier]
    7. Rear planetary middle sun gear is locked by B1-BRAKE
    8. Rear planetary short pinion gear (rotates counterclockwise on its axis, orbits clockwise)
    9. Rear planetary long pinion gear (rotates clockwise on its axis, orbits clockwise)
    10. Rear planetary ring gear (rotates clockwise) [the rear planetary ring gear is rotated by the rear planetary long pinion gear (because the rear planetary ring gear has internal gears, the rotational direction does not change)]
    11. Counter drive gear (rotates clockwise)

      [because the rear planetary ring gear is installed on the counter drive gear, the rotational direction and the revolution are the same as the rear planetary ring gear]

    12. Counter driven gear (rotates counterclockwise)
    13. Differential ring gear (rotates clockwise)
  3. "D"-3rd gear

    • Power transmission pathway [Operating components: C1, C3]

    PLANETARY GEAR UNIT DESCRIPTION

    Planetary gear unit Input, Locked, Output
    Front Input: Ring gear, Locked: Sun gear, Output: Carrier
    Rear Input: Rear Sun gear, Middle Sun gear, Locked: -, Output: Ring gear
    1. Input shaft (rotates clockwise) [same revolution as the torque converter's turbine runner]
    2. Front planetary ring gear (rotates clockwise) [same revolution as the input shaft]
    3. Front planetary pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the front planetary sun gear is locked by the oil pump, it is pressed against the front planetary ring gear and orbits the sun gear while rotating on its axis (because the front planetary ring gear has internal gears, the rotational direction does not change)]

    4. Front planetary carrier (rotates clockwise)

      [reduction: same revolution as the front planetary pinion gear orbit revolution]

    5. C1-CLUTCH (rotates clockwise) [connects the front planetary carrier and the rear planetary sun gear]
    6. C3-CLUTCH (rotates clockwise) [connects the front planetary carrier and the rear planetary middle sun gear]
    7. Rear planetary gear assembly (rotates clockwise)

      [because the rear planetary short pinion gear and the rear planetary long pinion gear are engaged, both the pinion gears are locked due to the difference in the rotational directions, and kinematic energy of the rear planetary sun gear and rear planetary middle sun gear is transmitted to the rear planetary ring gear]

    8. Rear planetary ring gear (rotates clockwise) [same revolution as the rear planetary carrier]
    9. Counter drive gear (rotates clockwise)

      [because the rear planetary ring gear is installed on the counter drive gear, the rotational direction and the revolution are same as the rear planetary ring gear]

    10. Counter driven gear (rotates counterclockwise)
    11. Differential ring gear (rotates clockwise)
  4. "D"-4th gear

    • Power transmission pathway [Operating components: C1, C2]

    PLANETARY GEAR UNIT DESCRIPTION

    Planetary gear unit Input, Locked, Output
    Front Input: Ring gear, Locked: Sun gear, Output: Carrier
    Rear Input: Rear Sun gear, Carrier, Locked: -, Output: Ring gear
    1. Input shaft (rotates clockwise) [same revolution as the torque converter's turbine runner]
    2. Front planetary ring gear (rotates clockwise) [same revolution as the input shaft]
    3. Front planetary pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the front planetary sun gear is locked by the oil pump, it is pressed against the front planetary ring gear and orbits the sun gear while rotating on its axis (because the front planetary ring gear has internal gears, the rotational direction does not change)]

    4. Front planetary carrier (rotates clockwise)

      [reduction: same revolution as the front planetary pinion gear orbit revolution]

    5. C1-CLUTCH (rotates clockwise) [connects the front planetary carrier and the rear planetary sun gear]
    6. Intermediate shaft (rotates clockwise) [same revolution as the input shaft]]
    7. C2-CLUTCH (rotates clockwise) [same revolution as the intermediate shaft]
    8. Rear planetary carrier (rotates clockwise) [same revolution as the intermediate shaft]
    9. Rear planetary short pinion gear (rotates clockwise on its axis, orbits clockwise) [because the rear planetary carrier rotates faster than the rear planetary sun gear]
    10. Rear planetary long pinion gear (rotates counterclockwise on its axis, orbits clockwise)
    11. Rear planetary ring gear (rotates clockwise)

      [because the rear planetary long pinion gear's rotation is subtracted from the rear planetary carrier revolution, the rear planetary ring gear revolution is slower than those of the rear planetary carrier]

    12. Counter drive gear (rotates clockwise)

      [because the rear planetary ring gear is installed on the counter drive gear, the rotational direction and the revolution is the same as the rear planetary ring gear]

    13. Counter driven gear (rotates counterclockwise)
    14. Differential ring gear (rotates clockwise)
  5. "D"-5th gear

    • Power transmission pathway [Operating components: C2, C3]

    PLANETARY GEAR UNIT DESCRIPTION

    Planetary gear unit Input, Locked, Output
    Front Input: Ring gear, Locked: Sun gear, Output: Carrier
    Rear Input: Carrier, Middle Sun gear, Locked: -, Output: Ring gear
    1. Input shaft (rotates clockwise) [same revolutions as torque converter's turbine runner]
    2. Front planetary ring gear (rotates clockwise) [same revolution as the input shaft]
    3. Front planetary pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the front planetary sun gear is locked by the oil pump, it is pressed against the front planetary ring gear and orbits the sun gear while rotating on its axis (because the front planetary ring gear has internal gears, the rotational direction does not change)]

    4. Front planetary carrier (rotates clockwise)

      [reduction: same revolution as the front planetary pinion gear orbit revolution]

    5. C3-CLUTCH (rotates clockwise) [connects the front planetary carrier and the rear planetary middle sun gear]
    6. Rear planetary middle sun gear (rotates clockwise)

      [same revolution as C3-CLUTCH (decelerates by the front planetary gear, so the revolutions are slower than the input shaft)]

    7. Intermediate shaft (rotates clockwise) [same revolution as the input shaft]
    8. C2-CLUTCH (rotates clockwise) [same revolution as the intermediate shaft]
    9. Rear planetary carrier (rotates clockwise) [same revolutions as intermediate shaft]
    10. Rear planetary long pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the rear planetary carrier rotates faster than the rear planetary middle sun gear, the rear planetary middle pinion gear is pushed out by the speed difference, and orbits clockwise while rotating clockwise on its axis.]

    11. Rear planetary ring gear (rotates clockwise)

      [because the rear planetary long pinion gear's rotation is added to the rear planetary carrier revolutions, rear planetary ring gear revolution is faster than those of the rear planetary carrier]

    12. Counter drive gear (rotates clockwise)

      [because the rear planetary ring gear is installed on the counter drive gear, the rotational direction and revolution is the same as the rear planetary ring gear]

    13. Counter driven gear (rotates counterclockwise)
    14. Differential ring gear (rotates clockwise)
  6. "D"-6th gear

    • Power transmission pathway [Operating components: B1, C2]

    PLANETARY GEAR UNIT DESCRIPTION

    Planetary gear unit Input, Locked, Output
    Front -
    Rear Input: Carrier, Locked: Middle Sun gear, Output: Ring gear
    1. Input shaft (rotates clockwise) [same revolution as the torque converter's turbine runner]
    2. Intermediate shaft (rotates clockwise) [same revolution as the torque converter's turbine runner]
    3. B1-BRAKE [locks the rear planetary middle sun gear]
    4. C2-CLUTCH [connects the intermediate shaft and the rear planetary carrier]
    5. Rear planetary carrier (rotates clockwise) [same revolution as the intermediate shaft]
    6. Rear planetary long pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the rear planetary middle sun gear is locked, it is always in a speed increasing condition]

    7. Rear planetary ring gear (rotates clockwise)

      [because the rear planetary long pinion gear's rotation is added to the rear planetary carrier revolution, the rear planetary ring gear revolution is faster than those of the rear planetary carrier]

    8. Counter drive gear (rotates clockwise)

      [because the rear planetary ring gear is installed on the counter drive gear, the rotational [because the rear planetary ring gear is installed on the counter drive gear, the rotational

    9. Counter driven gear (rotates counterclockwise)
    10. Differential ring gear (rotates clockwise)
  7. "R"-Reverse gear

    • Power transmission pathway [Operating components: C3, B2]

    PLANETARY GEAR UNIT DESCRIPTION

    Planetary gear unit Input, Locked, Output
    Front Input: Ring gear, Locked: Sun gear, Output: Carrier
    Rear Input: Middle Sun gear, Locked: Carrier, Output: Ring gear
    1. Input shaft (rotates clockwise) [same revolution as the torque converter's turbine runner]
    2. Front planetary ring gear (rotates clockwise) [same revolution as the input shaft]
    3. Front planetary pinion gear (rotates clockwise on its axis, orbits clockwise)

      [because the front planetary sun gear is locked by the oil pump, it is pressed against the front planetary ring gear and orbits the sun gear while rotating on its axis (because the front planetary ring gear has internal gears, the rotational direction does not change)]

    4. Front planetary carrier (rotates clockwise)

      [reduction: same revolution as the front planetary pinion gear orbit revolution]

    5. C3-CLUTCH (rotates clockwise) [connects the front planetary carrier and the rear planetary middle sun gear]
    6. Rear planetary middle sun gear (rotates clockwise)

      [same revolutions as the C3-CLUTCH (rotates slower than the input shaft)]

    7. B2-BRAKE [locks the rear planetary carrier]
    8. Rear planetary long pinion gear (rotates counterclockwise)
    9. Rear planetary ring gear (rotates counterclockwise)

      [the rear planetary ring gear is rotated by the rear planetary long pinion gear (because the rear planetary ring gear has internal gears, the rotational direction does not change)]

    10. Counter drive gear (rotates counterclockwise)

      [because the rear planetary ring gear is installed on the counter drive gear, the rotational direction and revolution are the same as the rear planetary ring gear]

    11. Counter driven gear (rotates clockwise)
    12. Differential ring gear (rotates counterclockwise)
