Monitor SCANTOOL Data

  1. Connect scantool to data link connector (DLC).
  2. Engine "ON".
  3. Monitor the all solenoid-valve parameters on the scan tool.
  4. Shift gear at each position.

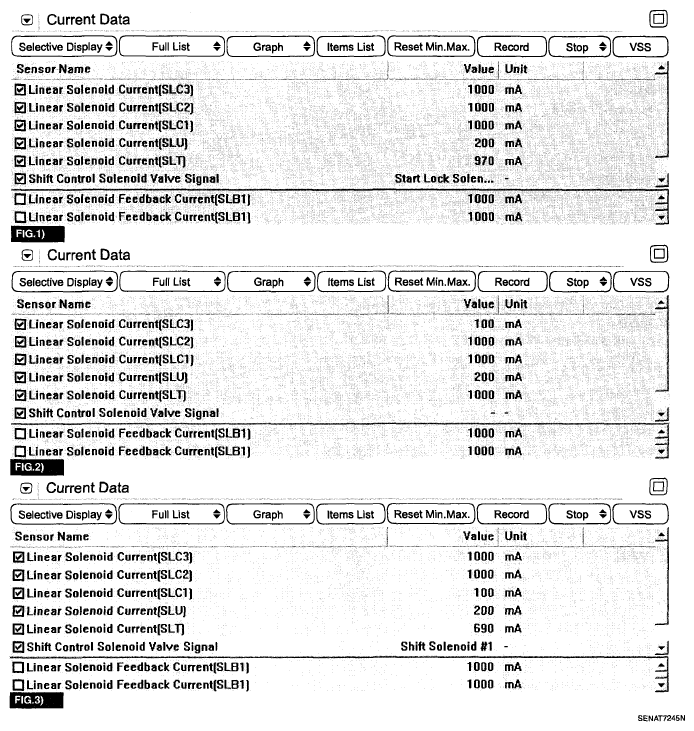

    Fig 1: Scan Tool Display - "SOLENOID DUTY" (1 Of 3)
    G05330243Courtesy of HYUNDAI MOTOR CO.

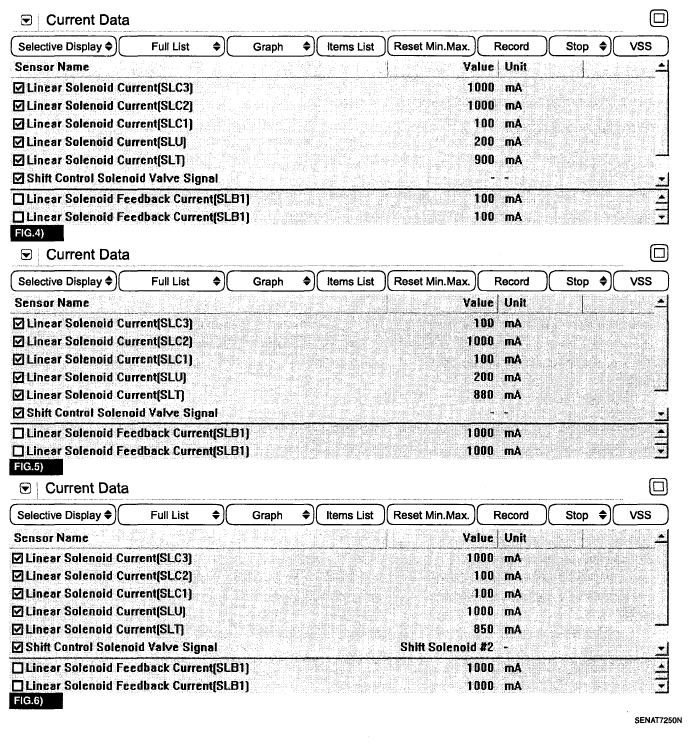

    Fig 2: Scan Tool Display - "SOLENOID DUTY" (2 Of 3)
    G05330244Courtesy of HYUNDAI MOTOR CO.

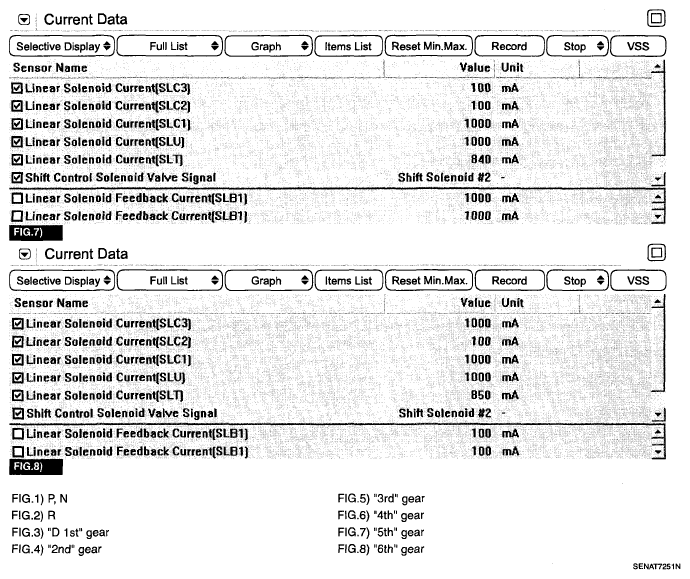

    Fig 3: Scan Tool Display - "SOLENOID DUTY" (3 Of 3)
    G05330245Courtesy of HYUNDAI MOTOR CO.
  5. Does all "SOLENOID DUTY" follow the reference data?

    YES:

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO:
